Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights

Grote Loading Ajax Spinner

668418" Long

668418" Long

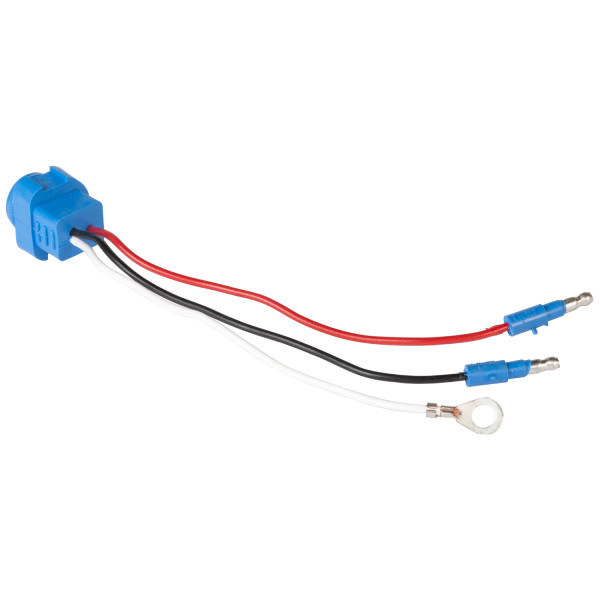

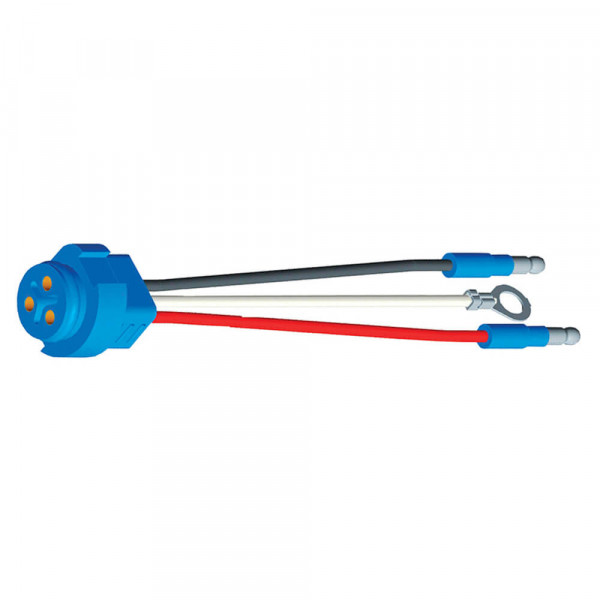

  • 66841 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male thumbnail

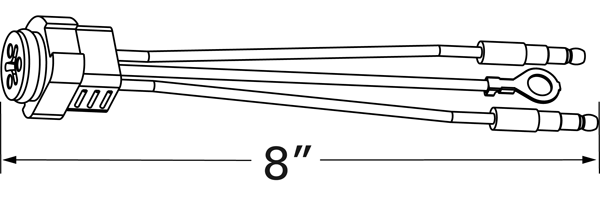

  • 66841 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side One: Slim-Line .180" Male Bullet/Ring terminal
  • Connector Side Two: Straight Male Pin
  • Wire Material: GPT
  • Connector Quantity: 4
  • Gauge: 16-3 GA
  • Wire Gauge: 16 GA
  • Connection Type: Male Pin, Slim-Line .180" Male Bullet/Ring terminal
  • Length: 8"
  • Wire Length: 7"
  • Fits: 4" Round and Oval STT Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-002-031
  • Diameter: 4"
  • # of Wires: 3
  • Style: Pigtail
Features & benefits
  • Dual function for S/T/T lamps
  • Quality ULTRA-BLUE-SEAL® construction
  • O-ring seal resists moisture and corrosion
  • Grease grooves for additional sealing protection
