Marker Light Pigtails

Grote Loading Ajax Spinner

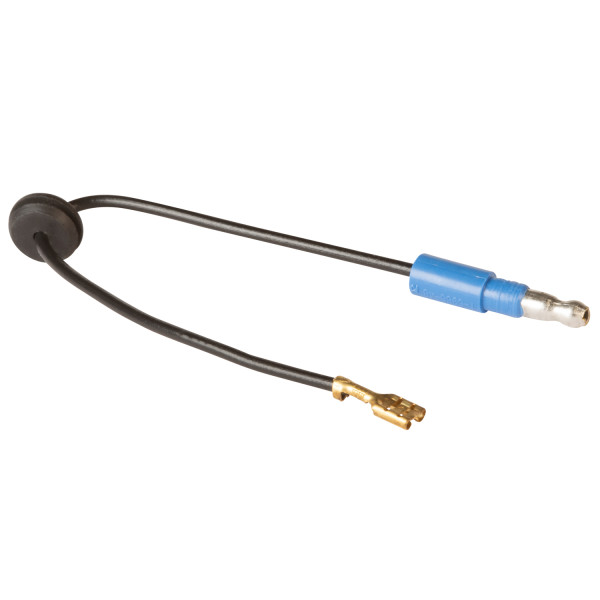

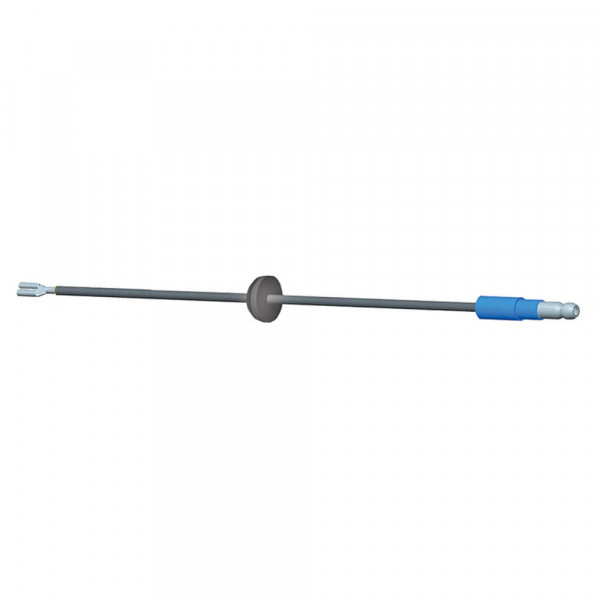

67120fits all Grote 2-Bulb Marker Lamps with flag terminals

67120fits all Grote 2-Bulb Marker Lamps with flag terminals

  • 67120 thumbnail

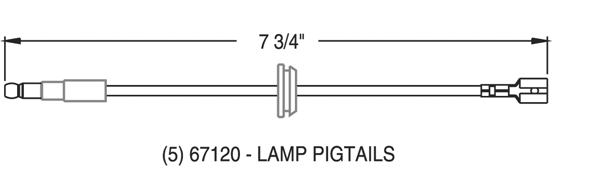

  • 67120 - drawing thumbnail
  • 67120 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Quantity: 2
  • Connector Side One: Female Flag Terminal
  • Connector Side Two: Slim-Line Male Bullet
  • Wire Material: GPT
  • Wire Gauge: 18 GA
  • Connection Type: Femal Flag, Slim-Line .180" Male Bullet
  • Length: (7 3/4")
  • Wire Length: 7"
  • Fits: 4526-, 4546-, 4593-, 4630-, 4678- & 4679- series Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-023
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Fits all Grote 2-Bulb Marker Lamps w/ flag terminals
  • Including 4526-, 4546-, 4593-, 4630-, 4678- & 4679- series lamps
