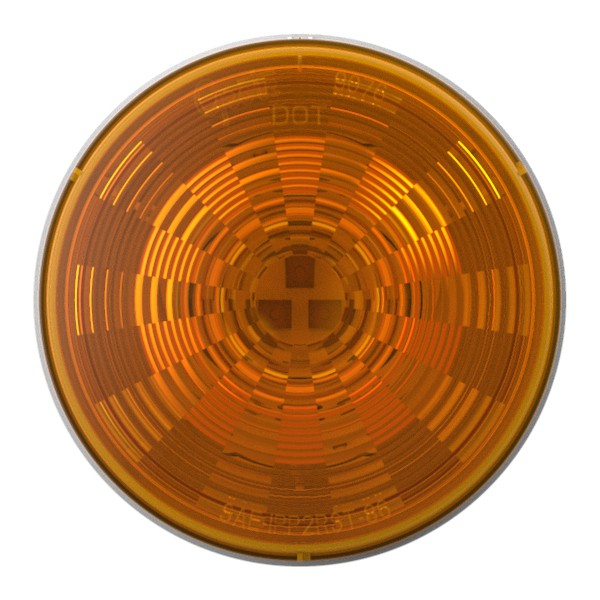

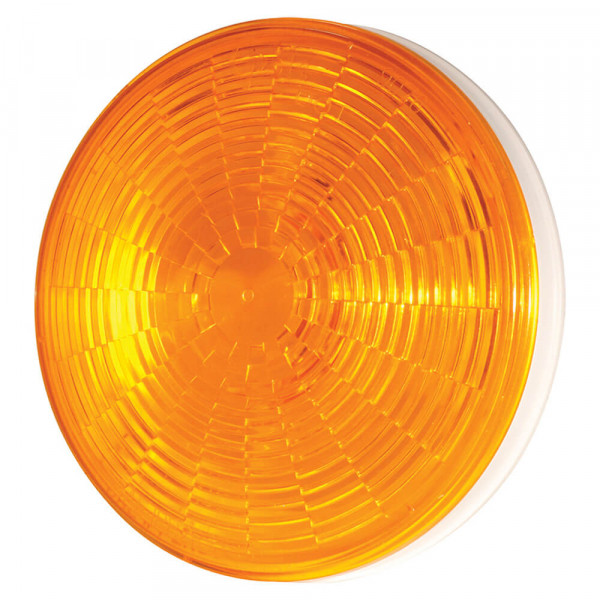

SuperNova® 4" NexGen™ LED Stop Tail Turn Lights
Grote's SuperNova® 4" NexGen™ LED stop tail turn lights operate with less voltage draw than standard incandescent lights, providing a crisp, clear-cut beam pattern & longer life. This family of lights features a fully-protected circuit board to prevent damage from extreme weather and travel conditions. These are available in a variety of options, including with and without flange, integrated flange, and multi-volt.
Compare
0 Product Added
Technical specifications
- Material: Acrylic Lens, ABS Housing
- Color: Amber
- Lens Color: Amber
- Housing Color: White
- Voltage: 12V
- Amperage: .15A
- Mounting Type: Grommet

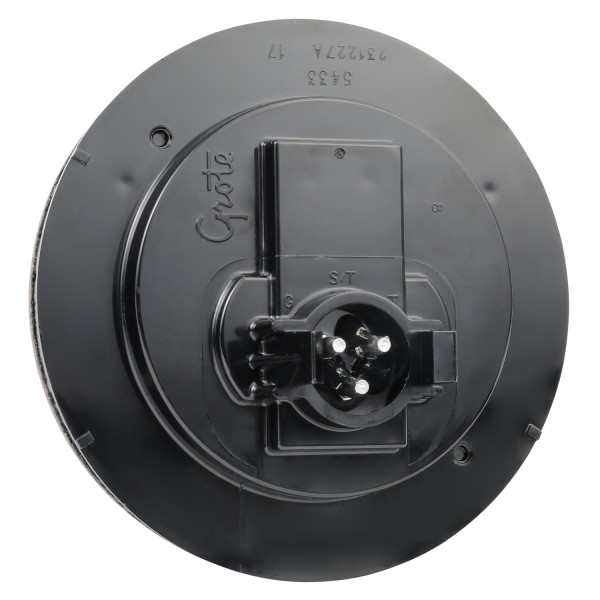

- Connection Type: Male Pin
- Size: 4"
- Regulations: FMVSS 108
- Functions: P2
- VMRS: 034-002-059

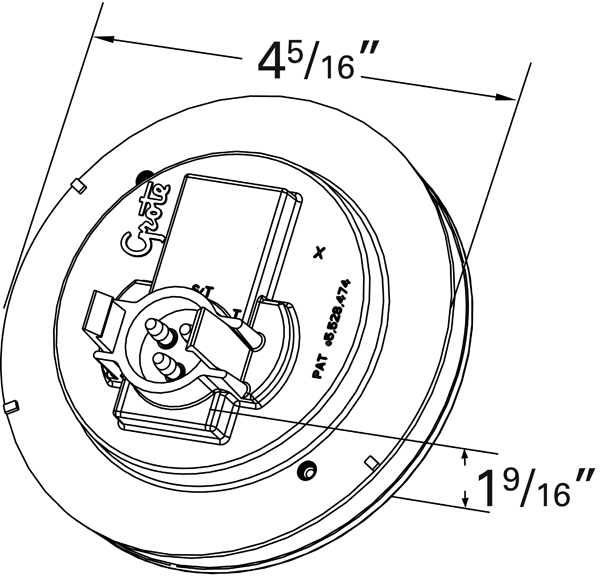

- Diameter: 4"
- Product Type: Auxiliary Lamp
- Product Line: NexGen™, SuperNova®
- Shape: Round
- Warranty: 10 Years
Features & benefits
- Less current draw than standard incandescent lights, leaving more power available to other vehicle systems
- With a wider range of voltage, lights can be used virtually anywhere
- Available in Male Pin, Hard Shell or Hardwire terminations
- Fully encapsulated circuitry for total circuit board protection
- Uses existing pigtails and wiring for cost effective retrofit
- Fits all Grote bracket and mounting options
- 20% less current draw than major competitor LED products
- Lower overall weight compared to existing LED products; contributes to better fuel efficiency
- Environmental encapsulant potting for total circuit board protection
- Hermetic lens-to-housing seal prevents moisture intrusion
- Resembles incandescent lights to alleviate theft concerns
- Turn lamp can be utilized in the front or rear position on the vehicle
Replacements, Tools & Accessories
Bracket
93552
Bracket
51090
Grommet
91740
Grommet
91950
Pigtail
66861
Pigtail
66862
Pigtail STT 3-Wire
66815
Pigtail STT 3-Wire
67002
Pigtail STT 3-Wire
66841
Pigtail STT 3-Wire
66816
Pigtail STT 3-Wire
67005
Bracket
93683
Bracket
43253
Bracket
92510
Bracket
92511
Bracket
92512
Bracket
43572
Bracket
43655
Bracket
43732
Bracket
93190
Pigtail STT 3-Wire
66845
