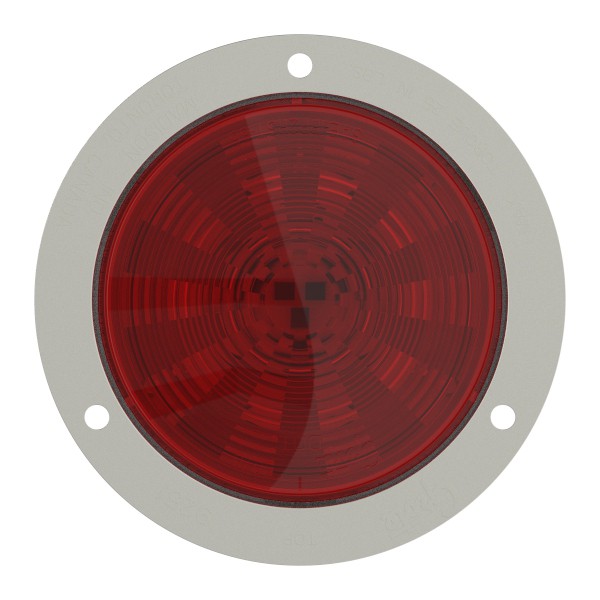

SuperNova® 4" NexGen™ LED Stop Tail Turn Lights

Grote's SuperNova® 4" NexGen™ LED stop tail turn lights operate with less voltage draw than standard incandescent lights, providing a crisp, clear-cut beam pattern & longer life. This family of lights features a fully-protected circuit board to prevent damage from extreme weather and travel conditions. These are available in a variety of options, including with and without flange, integrated flange, and multi-volt.
Grote Loading Ajax Spinner

54492Stainless Steel Flange, Male Pin

54492Stainless Steel Flange, Male Pin

  • SuperNova® 4" NexGen™ LED Stop Tail Turn Lights, Stainless Steel Flange, Male Pin 360 thumbnail
  • SuperNova® 4" NexGen™ LED Stop Tail Turn Lights, Stainless Steel Flange, Male Pin thumbnail

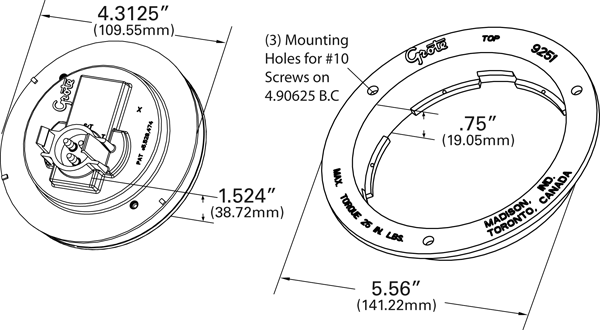

  • Grote product drawing - 4" Round LED Stop Tail Turn Light with male pin and stainless steel flange thumbnail
  • SuperNova® 4" NexGen™ LED Stop Tail Turn Lights, Stainless Steel Flange, Male Pin, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing, Stainless Steel Flange
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12 V
  • Amperage: 0.03–0.24 A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • VMRS: 034-002-059
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • Product Line: NexGen™, SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Less current draw than standard incandescent lights, leaving more power available to other vehicle systems
  • With a wider range of voltage, lights can be used virtually anywhere
  • Available in Male Pin, Hard Shell or Hardwire terminations
  • Fully encapsulated circuitry for total circuit board protection
  • Uses existing pigtails and wiring for cost effective retrofit
  • Fits all Grote bracket and mounting options
  • 20% less current draw than major competitor LED products
  • Lower overall weight compared to existing LED products; contributes to better fuel efficiency
  • Environmental encapsulant potting for total circuit board protection
  • Hermetic lens-to-housing seal prevents moisture intrusion
  • Resembles incandescent lights to alleviate theft concerns
  • Turn lamp can be utilized in the front or rear position on the vehicle
