Power Unit Module

Grote Loading Ajax Spinner

50820Female Pin

50820Female Pin

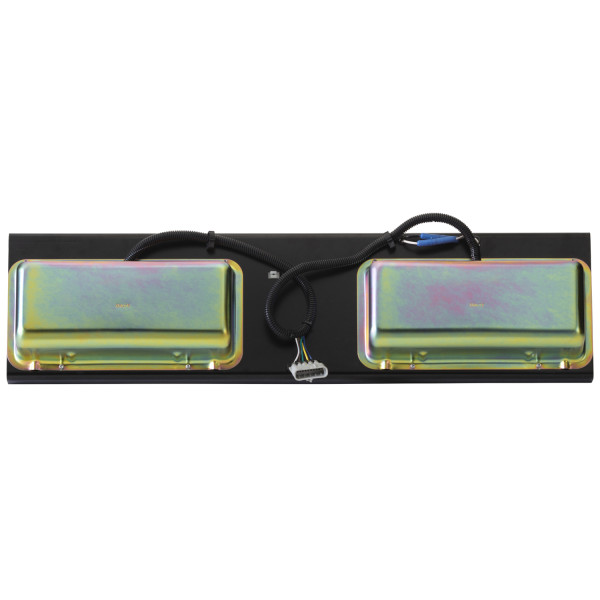

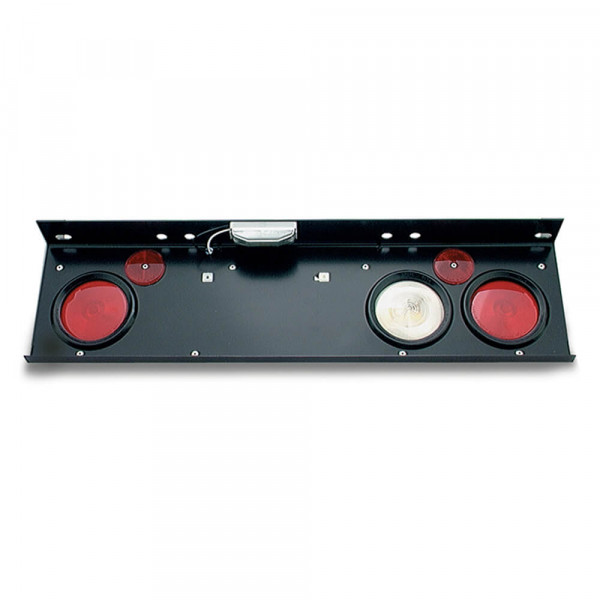

  • 50820 thumbnail

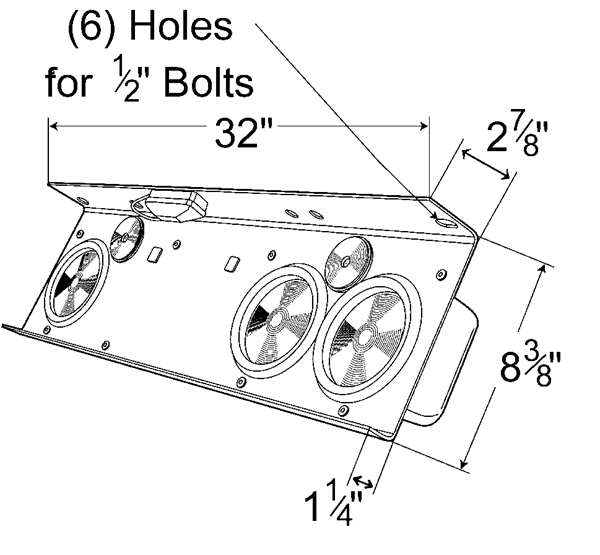

  • Grote product drawing - power unit module female pin thumbnail
  • 50820 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Steel Housing, PVC Grommet
  • Color: Red, White
  • Lens Color: Red/Clear
  • Housing Color: Black
  • Voltage: 12 V
  • Amperage: 0.66–4.2 A
  • Mounting Type: Screw
  • Connection Type: Packard
  • Regulations: FMVSS 108
  • Functions: A, I, L, R, S, T
  • Bulb: 32, 2 CP, Backup - (2) 32 CP, License - 2 CP
  • VMRS: 034-002-022
  • Product Type: Power Module
  • Shape: Rectangular
  • Warranty: 1 Year
Features & benefits
  • Includes reflector
  • Heavy-gauge steel plate and can
  • Torsion Mount® II 4" round female pin S/T/T lamps
  • Pre-assembled wiring harness and five-way connector
Find a Local Distributor

Replacements, Tools & Accessories

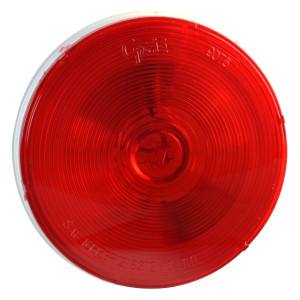

Accessory 52772
52772
 Accessory 62271
62271
 Accessory 60291
60291
 Bracket 43780
43780
 Grommet 91740
91740

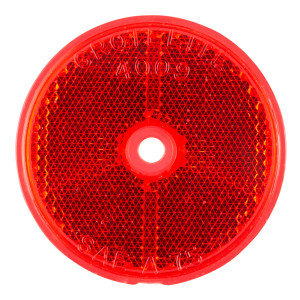

 Other 40092
40092
