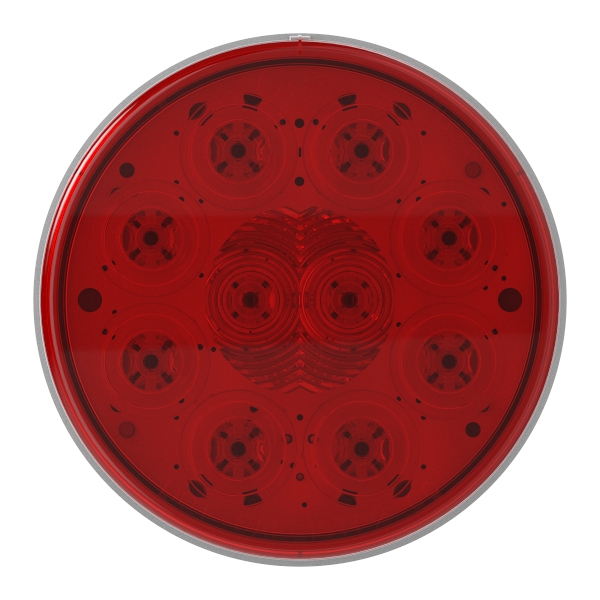

    SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

    Grote Loading Ajax Spinner

    53252Grommet Mount, Male Pin

    53252Grommet Mount, Male Pin

    • 4" LED Stop Tail Turn Light 360 thumbnail
    • 4" LED Stop Tail Turn Light thumbnail
    • thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, Polycarbonate/ABS Housing
    • Color: Red
    • Lens Color: Red
    • Housing Color: Gray
    • Voltage: 12V
    • Amperage: .03A-.24A
    • Mounting Type: Grommet
    • Connection Type: Male Pin
    • Size: 4"
    • Regulations: FMVSS 108
    • Functions: P2, S, T, I
    • VMRS: 034-002-059

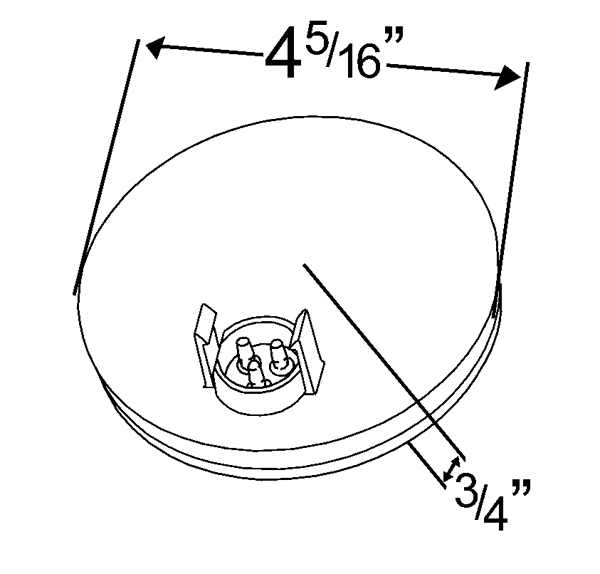

    • Diameter: 4"
    • ABS: Y
    • Bulk Pack #53252-3: 16
    Features & benefits
    • Hermetic lens-to-housing seal
    • Encapsulant potting for total circuit board protection
    • Uses same UBS pigtail as male pin incandescent
    • Lens design spreads light for maximum dispersion
    • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals

    Replacements, Tools & Accessories

    Adapter Pigtail Two Light 9" Y Adapter Pigtail, Adapter, Male-to-Male Pin, Straight
    66813
     Adapter Pigtail Adapter Plug, 6" Long, Female Pin to Male Pin Termination
    66830
     Adapter Pigtail Adapter Plug, 6" Long, Female Pin to 90° Male Pin Termination
    66836
     Adapter Pigtail Adapter Plugs for Hard Shell Connectors, 6" Long, Competitive Harness to Male Pin Connector
    67006
     Bracket Snap-In Theft-Resistant Flange For 4" Round LED Lights, Black
    93552
     Bracket Theft-Resistant Flange For 4" Round Lights, Steel
    43253
     Bracket Theft-Resistant Flange For 4" Round Lights, White
    92510
     Bracket Theft-Resistant Flange For 4" Round Lights, Black
    92512
     Bracket Theft-Resistant Flange For 4" Round Lights, Chrome Plated
    92513
     Bracket Mounting Bracket For 4" Round Lights, 90° Angle, Black
    43572
     Bracket Mounting Module For 4" Round Lights, Yellow Zinc
    43655
     Bracket Mounting Module For 4" Round Lights, Black
    43732
     Bracket Theft-Resistant Betts® Lighting Adapter, Gray
    93190
     Bracket Snap-In Theft-Resistant Flange For 4" Round LED Lights, Chrome Plated
    93553
     Bracket Stainless Steel Snap-In Theft-Resistant Flange For 4" Round LED Lights, 4 1/2" Size
    93683
     Bracket Theft-Resistant Flange For 4" Round Lights, Gray
    92511
     Bracket Mounting Module For 4" Round Lights, Gray
    51090
     Grommet Grommet For 4" Round Lights, Open Grommet
    91740
     Grommet Closed Back Grommet For 4" Round Lights, Black
    91950
     Pigtail STT 3-Wire 66815 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return, Slim-Line .180 Male
    66815
     Pigtail STT 3-Wire 67002 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
    67002
     Pigtail STT 3-Wire 66841 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
    66841
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
    66816
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
    67005
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
    66845

    Customer reviews

    • 53252

      I am very dissatisfied with this light I purchased 12 to replace all the lights in my trailer just before Thanksgiving and here we are in March and all 12 have water in them. I removed them and the backs are cracked.

      Earnest D. Mar 31, 2018
