SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54042Hard Shell Connecter, Stainless-Steel Snap-In Flange

54042Hard Shell Connecter, Stainless-Steel Snap-In Flange

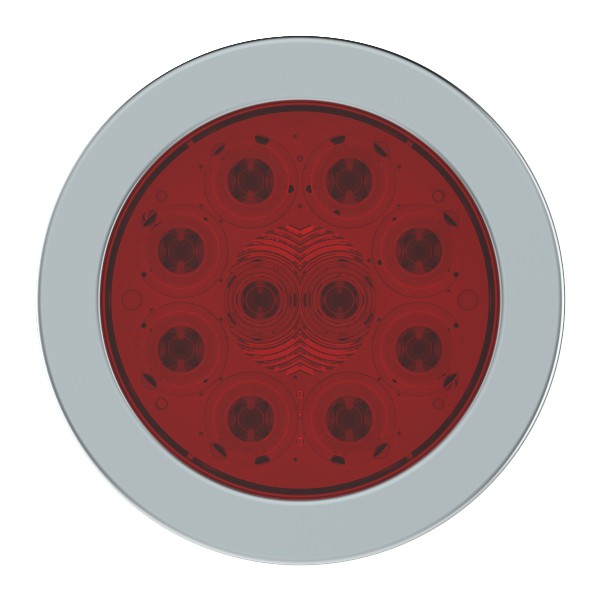

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connecter, Stainless-Steel Snap-In Flange 360 thumbnail
  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connecter, Stainless-Steel Snap-In Flange thumbnail

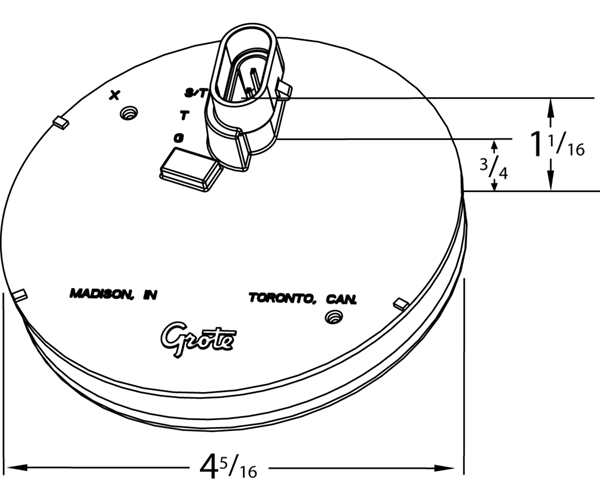

  • Grote product drawing - SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light with Stainless-Steel Snap-In Flange thumbnail

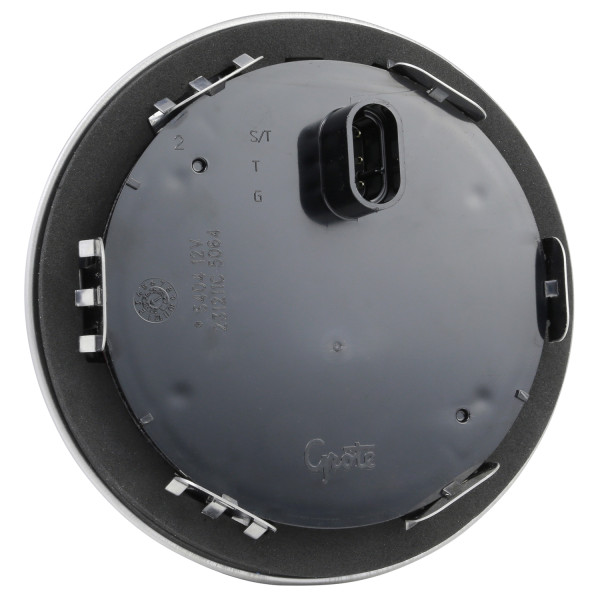

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connecter, Stainless-Steel Snap-In Flange, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Gray
  • Voltage: 12V
  • Amperage: .24A
  • Mounting Type: Bracket
  • Connection Type: Hardshell
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • VMRS: 034-002-059
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Lens design spreads light for maximum dispersion
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
