SuperNova® Turtleback® II LED High Mount Stop Turn Marker Lights

Grote Loading Ajax Spinner

54002High Mount

54002High Mount

  • LED High Mount Stop Turn Marker Light thumbnail

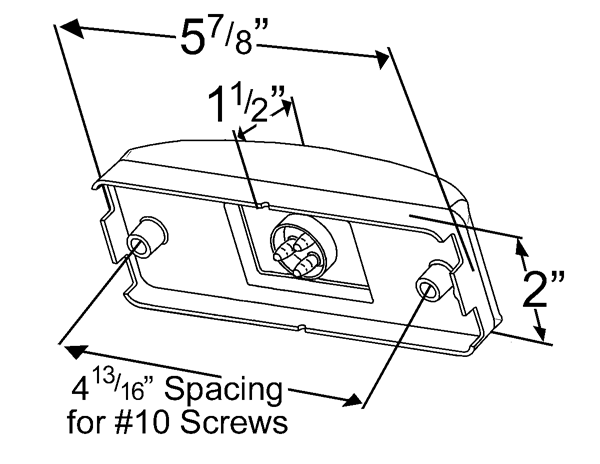

  • Grote product drawing - LED High Mount Stop Turn Marker Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .03A-.25A
  • Mounting Type: Screw
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: P2, U
  • VMRS: 034-002-040
  • Product Type: Marker Lamp
  • Style: High-Mount
  • Product Line: SuperNova®, Turtleback®
  • Shape: Rectangular
  • Warranty: 10 Years
Features & benefits
  • Sealed Turtleback® and Three-wire termination
  • Supplemental high-mount function provides greater visibility in a location that normally serves as an ID function or clearance function
  • Potted protection against vibration and corrosion
  • Lamp functions as a marker, clearance, ID and supplemental high mount stop or turn lamp
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 4 3/4" Corner Radius Bracket, Gray
43050
 Pigtail STT 3-Wire 66900
66900
 Pigtail STT 3-Wire 66904
66904
 Pigtail STT 3-Wire 66905
66905
