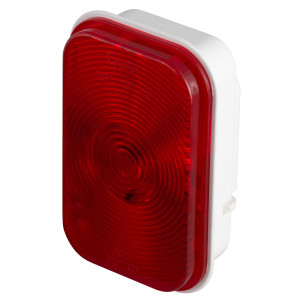

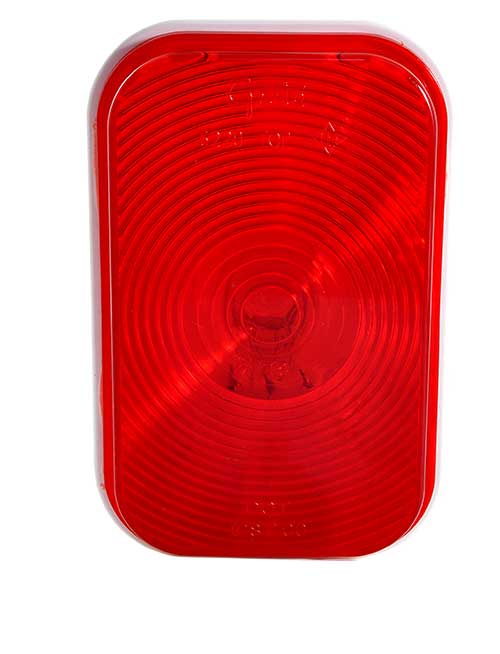

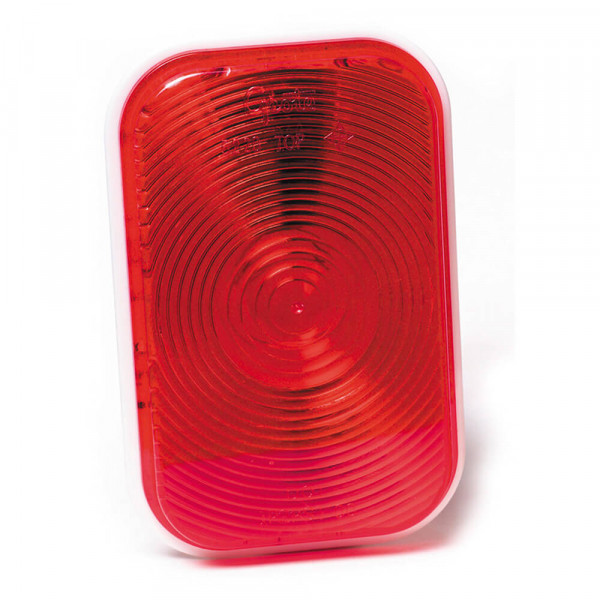

Rectangular Stop Tail Turn Light

Grote Loading Ajax Spinner

52202Double Contact

52202Double Contact

  • rectangular stop tail turn light double contact red 360 thumbnail
  • rectangular stop tail turn light double contact red thumbnail
  • thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .48A-2.1A
  • Mounting Type: Grommet
  • Connection Type: Female Pin
  • Regulations: FMVSS 108
  • Functions: P2, S, T, I
  • Bulb: 2057, 32, 2 CP
  • VMRS: 034-002-058
Features & benefits
  • Rubber shock-mounted bulb socket
  • Hermetic lens-to-housing sealed lamp

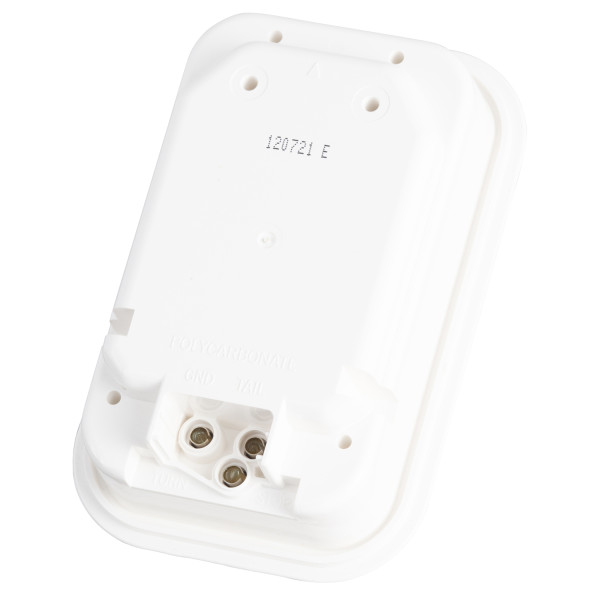

  • Industry standard female pin connection
Find a Local Distributor

Replacements, Tools & Accessories

Grommet Grommet For Rectangular Lights, Mounting Grommet, Black
94180
 Pigtail
67090
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
66825
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
67000
 Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
66811
 Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
66844
 Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
66843
 Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
66811
