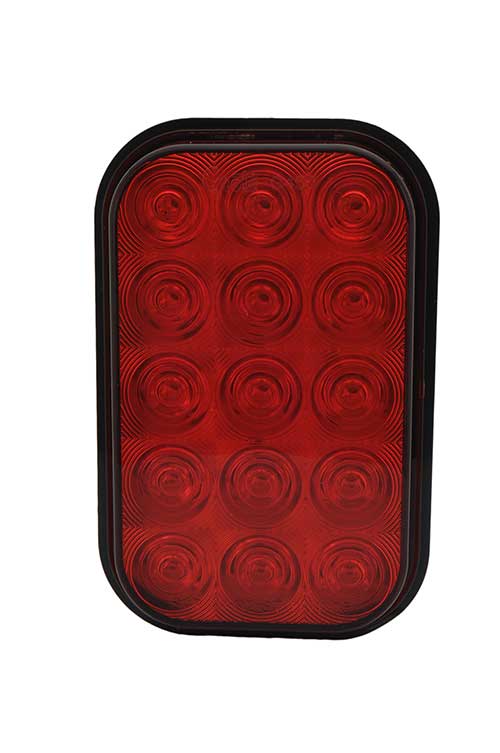

Hi Count® Rectangular LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

G4502Red

G4502Red

  • G4502 360 thumbnail
  • G4502 thumbnail

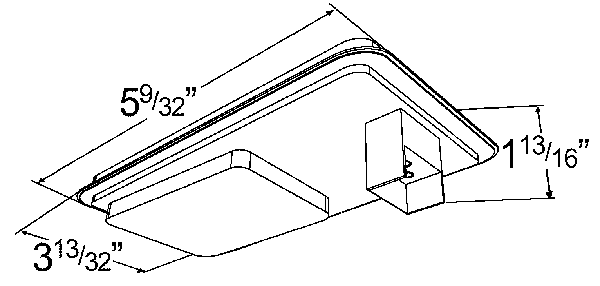

  • Grote product drawing - hi count rectangular led stop tail turn light thumbnail
  • G4502 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .07A-.5A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Female Pin
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: Hi Count®
  • Shape: Rectangular
  • Warranty: 2 Years
  • Bulk Pack #G4502-3: 0
Features & benefits
  • 15 Diodes
  • LED instant-on feature provides early stop warning for trailing motorists
  • Meets photometric requirements for front, park and turn
  • Vertical or horizontal mount
  • Potted for total circuit-board protection against vibration and corrosion
  • Hermetically sealed polycarbonate lens and body
  • Standard female pin connection provides easy retrofits
Find a Local Distributor

Replacements, Tools & Accessories

Grommet 94180
94180
 Pigtail 66825
66825
 Pigtail 67000
67000
 Pigtail 66812
66812
 Pigtail 67090
67090
