SuperNova® 4" Full-Pattern LED Stop Tail Turn Lights

Grote’s SuperNova® Full-Pattern Stop Tail Turn Lights are available in a variety of mounting & voltage options. They come in both red and amber, and feature a potted circuit board for full protection. These lights are built with tin-plated, solid-brass pin terminations for top-of-the-line performance.
Grote Loading Ajax Spinner

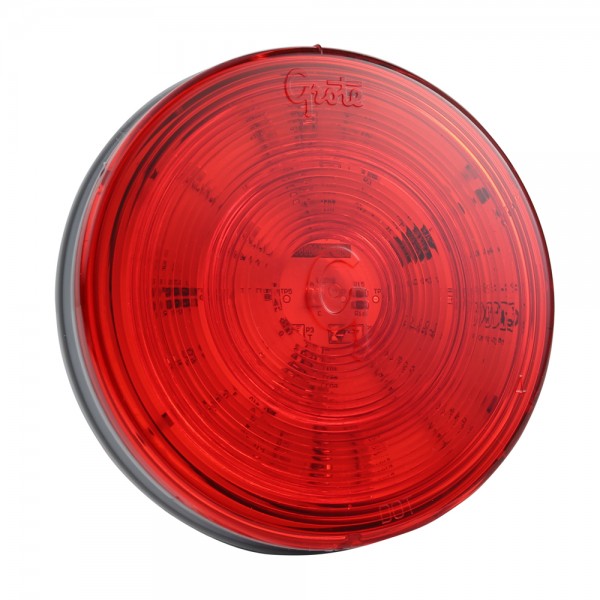

53312STT, Grommet Mount, Male Pin

53312STT, Grommet Mount, Male Pin

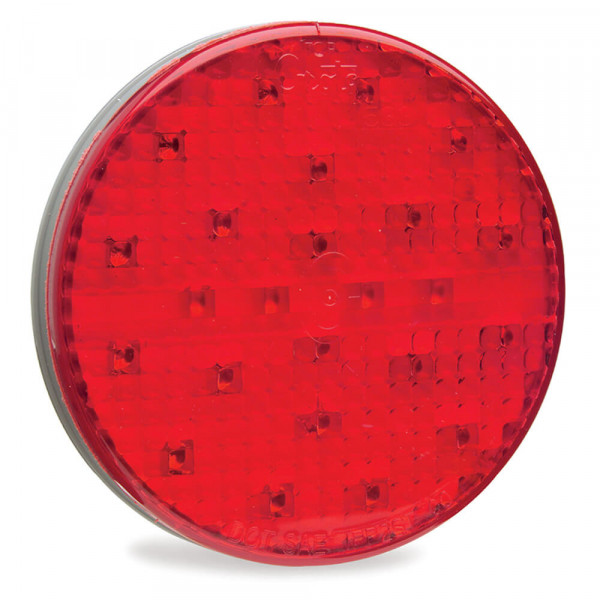

  • 53312 thumbnail
  • drawing of LED Stop Tail Turn Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Voltage: 12V
  • Mounting Type: Grommet
  • Connection Type: Male Pin
  • Lens Color: Red
  • Amperage: .03A (Tail); .56A (Stop)
  • Size: 4"
  • Functions: P2, S, T, I
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, Polycarbonate/ABS Housing
  • Diameter: 4"
  • Housing Color: Gray
  • ABS: Y
Features & benefits
  • Hermetic lens-to-housing seal
  • Potted for total circuit board protection
  • Advanced pin connection system uses tin-plated, solid-brass pin terminations
