SuperNova® 4" Full-Pattern LED Stop Tail Turn Lights

Grote’s SuperNova® Full-Pattern Stop Tail Turn Lights are available in a variety of mounting & voltage options. They come in both red and amber, and feature a potted circuit board for full protection. These lights are built with tin-plated, solid-brass pin terminations for top-of-the-line performance.
Grote Loading Ajax Spinner

53313Grommet Mount, Front Park/Turn, Male Pin

53313Grommet Mount, Front Park/Turn, Male Pin

  • 53313 thumbnail

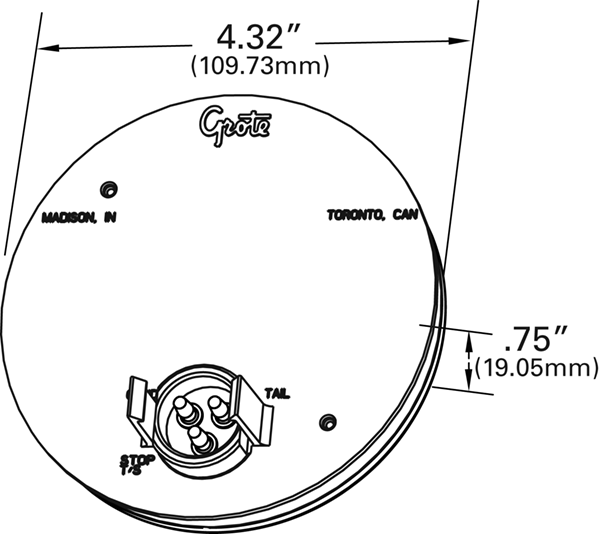

  • Grote product drawing - SuperNova® 4" Full-Pattern LED Stop Tail Turn Front Turn Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Voltage: 12V
  • Mounting Type: Grommet
  • Connection Type: Male Pin
  • Lens Color: Amber
  • Shape: Round
  • Amperage: .13A (Tail); 1.14A (Stop)
  • Size: 4"
  • Functions: P2, I, P
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, Polycarbonate/ABS Housing
  • Product Type: Front Park/Turn Light
  • Diameter: 4"
  • Housing Color: Gray
  • ABS: Y
Features & benefits
  • Hermetic lens-to-housing seal
  • Potted for total circuit board protection
  • Advanced pin connection system uses tin-plated, solid-brass pin terminations
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Snap-In Theft-Resistant Flange For 4" Round LED Lights, Black
93552
 Bracket Stainless Steel Snap-In Theft-Resistant Flange For 4" Round LED Lights, 4 1/2" Size
93683
 Grommet Grommet For 4" Round Lights, Open Grommet
91740
 Grommet Closed Back Grommet For 4" Round Lights, Black
91950
 Pigtail STT 3-Wire 66815 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return, Slim-Line .180 Male
66815
 Pigtail STT 3-Wire 67002 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
67002
 Pigtail STT 3-Wire 66841 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
66841
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
66816
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
67005
 Bracket Snap-In Theft-Resistant Flange For 4" Round LED Lights, Chrome Plated
93553
 Bracket Theft-Resistant Betts® Lighting Adapter, Gray
93190
 Bracket Theft-Resistant Flange For 4" Round Lights, Steel
43253
 Bracket Theft-Resistant Flange For 4" Round Lights, White
92510
 Bracket Theft-Resistant Flange For 4" Round Lights, Black
92512
 Bracket Mounting Bracket For 4" Round Lights, 90° Angle, Black
43572
 Bracket Mounting Module For 4" Round Lights, Yellow Zinc
43655
 Bracket Mounting Module For 4" Round Lights, Black
43732
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
66845
