    Grote Select™ Oval LED Stop Tail Turn Lights

    Grote Loading Ajax Spinner

    54172Female Pin

    54172Female Pin

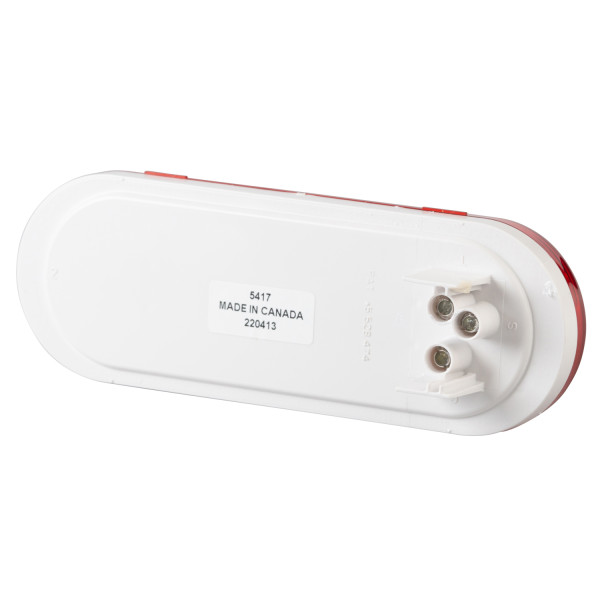

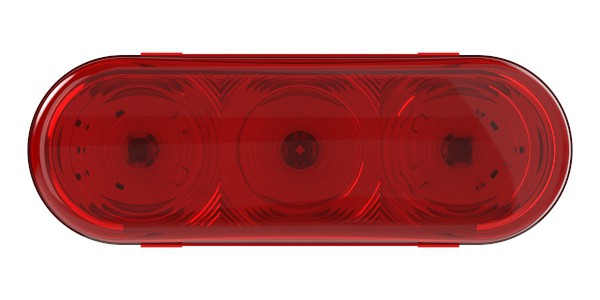

    • grote select led oval female pin red 360 thumbnail
    • grote select led oval female pin red thumbnail
    • thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, ABS Housing
    • Color: Red
    • Lens Color: Red
    • Housing Color: White
    • Voltage: 12V
    • Amperage: .04A-.48A
    • Mounting Type: Grommet
    • Connection Type: Female Pin

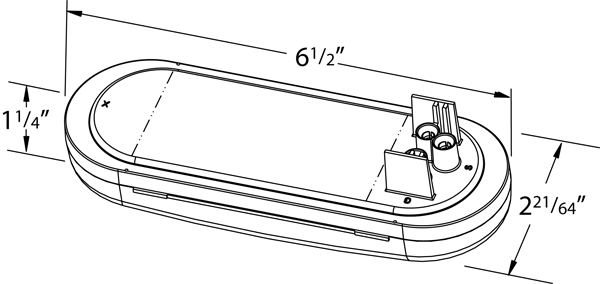

    • Size: 6"
    • Regulations: FMVSS 108
    • Functions: P2, S, T, P, I6
    • VMRS: 034-002-059
    Features & benefits
    • Fits current mounting flanges and grommets
    • Female pin connection accepts all popular connectors
    • Specially formulated encapsulent potting protects against moisture, vibration and corrosion

    Replacements, Tools & Accessories

    Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
    43362
     Bracket "Z" Mounting Bracket For Oval Light
    43952
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
    43220
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
    43223
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
    43222
     Bracket Mounting Bracket For Oval Lights, Black
    43100
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
    43723
     Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Polycarbonate, Black
    42152
     Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
    42153
     Bracket Stainless Steel Security Ring
    42103
     Grommet Grommet For 6" Oval Lights, Open Grommet
    92420
     Grommet Grommet For 6" Oval Lights, Closed Back
    92720
     Pigtail
    67090
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
    66825
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
    67000
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 6" Long, Chassis Ground, Slim-Line .180 Male
    66812
     Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
    66844
     Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
    66843
     Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
    66811
