    SuperNova® 4" NexGen™ LED Stop Tail Turn Lights

    Grote's SuperNova® 4" NexGen™ LED stop tail turn lights operate with less voltage draw than standard incandescent lights, providing a crisp, clear-cut beam pattern & longer life. This family of lights features a fully-protected circuit board to prevent damage from extreme weather and travel conditions. These are available in a variety of options, including with and without flange, integrated flange, and multi-volt.
    Grote Loading Ajax Spinner

    54292Grommet Mount, Hard Shell, Multi-Volt

    54292Grommet Mount, Hard Shell, Multi-Volt

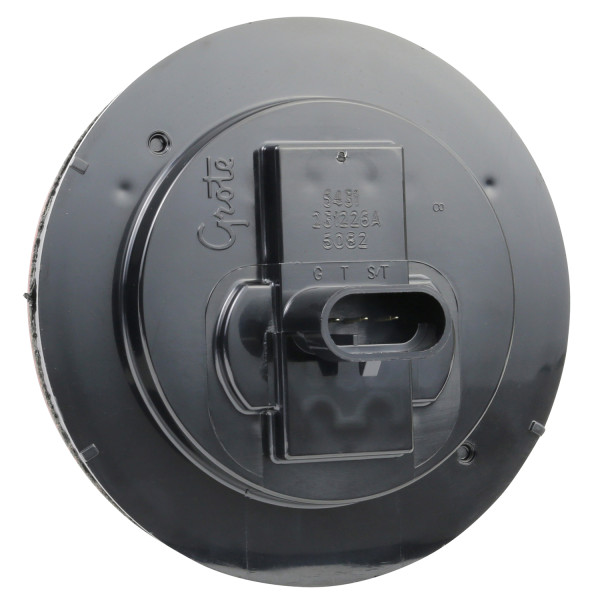

    • Hard Shell LED Stop Tail Turn Light 360 thumbnail
    • Hard Shell LED Stop Tail Turn Light thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, ABS Housing
    • Color: Red
    • Lens Color: Red
    • Housing Color: White
    • Voltage: 9-32V
    • Amperage: .01A - .09A
    • Mounting Type: Grommet, Bracket
    • Connection Type: Hardshell
    • Size: 4"
    • Regulations: FMVSS 108
    • Functions: P2, S, T, I
    • VMRS: 034-002-059

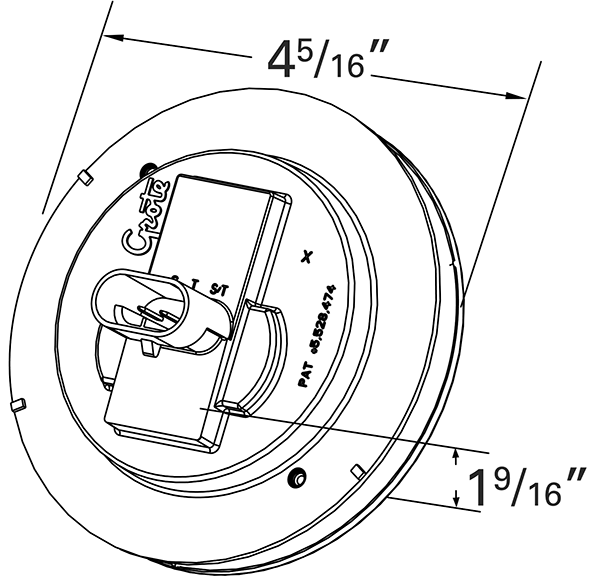

    • Diameter: 4"
    Features & benefits
    • Less current draw than standard incandescent lights, leaving more power available to other vehicle systems
    • With a wider range of voltage, lights can be used virtually anywhere
    • Available in Male Pin, Hard Shell or Hardwire terminations
    • Fully encapsulated circuitry for total circuit board protection
    • Uses existing pigtails and wiring for cost effective retrofit
    • Fits all Grote bracket and mounting options
    • 20% less current draw than major competitor LED products
    • Lower overall weight compared to existing LED products; contributes to better fuel efficiency
    • Environmental encapsulant potting for total circuit board protection
    • Hermetic lens-to-housing seal prevents moisture intrusion
    • Resembles incandescent lights to alleviate theft concerns
    • Turn lamp can be utilized in the front or rear position on the vehicle

    Replacements, Tools & Accessories

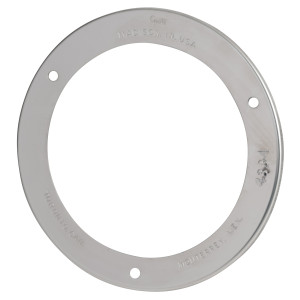

    Bracket Stainless Steel Snap-In Theft-Resistant Flange For 4" Round LED Lights, 4 1/2" Size
    93683
     Bracket Snap-In Theft-Resistant Flange For 4" Round LED Lights, Black
    93552
     Bracket Theft-Resistant Flange For 4" Round Lights, White
    92510
     Bracket Theft-Resistant Betts® Lighting Adapter, Gray
    93190
     Bracket Mounting Bracket For 4" Round Lights, 90° Angle, Black
    43572
     Bracket Mounting Module For 4" Round Lights, Yellow Zinc
    43655

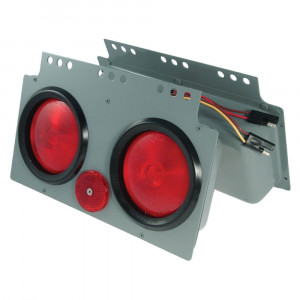

     Bracket 2-Light Mounting Module For 4" Round Lights, Black
    43642

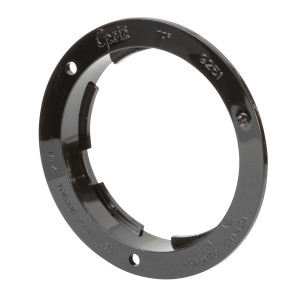

     Bracket Theft-Resistant Flange For 4" Round Lights, Black
    92512
     Bracket Mounting Module For 4" Round Lights, Black
    43732
     Bracket Mounting Module For 4" Round Lights, Gray
    51090
     Bracket Theft-Resistant Flange For 4" Round Lights, Chrome Plated
    92513
     Bracket Theft-Resistant Flange For 4" Round Lights, Gray
    92511
     Bracket Theft-Resistant Flange For 4" Round Lights, Steel
    43253
     Grommet Grommet For 4" Round Lights, Open Grommet
    91740
     Grommet Closed Back Grommet For 4" Round Lights, Black
    91950
     Pigtail Hard-Shell Connector Pigtail, 11" Long, Chassis Ground, Blunt Cut Wires, Dual Function
    66861
     Pigtail Hard-Shell Connector Pigtail, 11" Long, Chassis Ground, Blunt Cut Wire, Single Function
    66862

    Customer reviews

    • It doesn't look as though anyone has left a review for this product yet, be the first?
    Leave a review keyboard_arrow_right

    I consent to my data being processed and published by Grote Industries

    I would like to be added to the Grote Industries email marketing list.

    By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

    This is a response from the server

    Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
    rolling logo ajax spinner

    Please rate the selected product out of 5.

    Similar products you may be interested in
    Double-Face LED Stop Tail Turn Light with Side Marker

    Hi Count® Double-Face LED Stop Tail Turn Lights with Side Marker
    rectangular surface mount turn light red

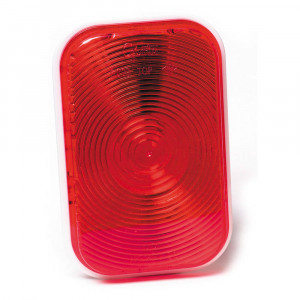

    Rectangular Surface Mount Turn Lights
