SuperNova® 4" Full-Pattern LED Stop Tail Turn Lights

Grote’s SuperNova® Full-Pattern Stop Tail Turn Lights are available in a variety of mounting & voltage options. They come in both red and amber, and feature a potted circuit board for full protection. These lights are built with tin-plated, solid-brass pin terminations for top-of-the-line performance.
Grote Loading Ajax Spinner

53192STT, Theft-Resistant Flange, Male Pin

53192STT, Theft-Resistant Flange, Male Pin

  • 4" LED Stop Tail Turn Light with Theft-Resistant Flange thumbnail

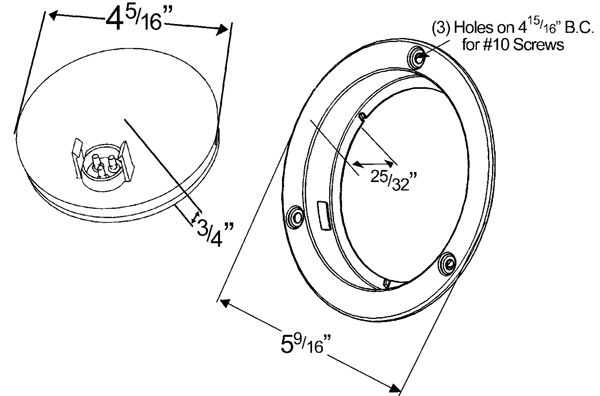

  • Grote product drawing - 4" LED Stop Tail Turn Light with Theft-Resistant Flange thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Product Line: SuperNova®
  • Voltage: 12 V
  • Mounting Type: Flange Mount
  • Connection Type: Male Pin
  • Lens Color: Red
  • Shape: Round
  • Amperage: 0.03 A (Tail); 0.56 A (Stop)
  • Size: 4"
  • Functions: T, S, P2, I
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Stainless Steel Flange, PC/ABS Housing, Acrylic Lens
  • Product Type: Stop Tail Turn
  • Diameter: 4"
  • Housing Color: Gray
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Potted for total circuit board protection
  • Advanced pin connection system uses tin-plated, solid-brass pin terminations
