Thin-Line Double-Face Light

Grote Loading Ajax Spinner

50630Double Contact

50630Double Contact

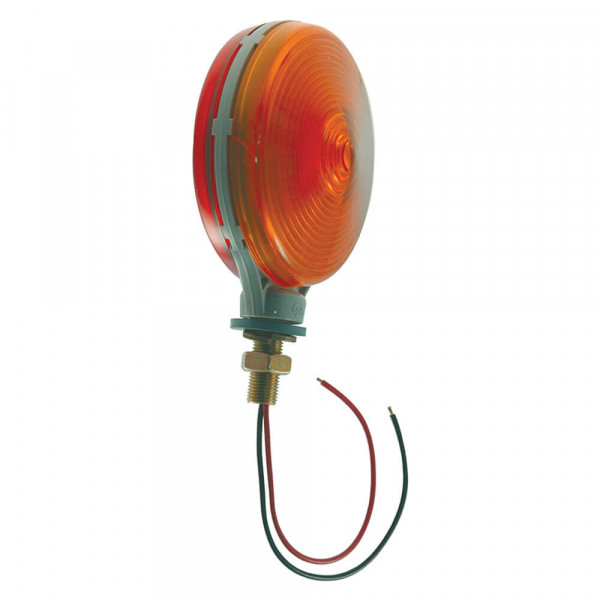

  • thin line double face light double contact red amber thumbnail

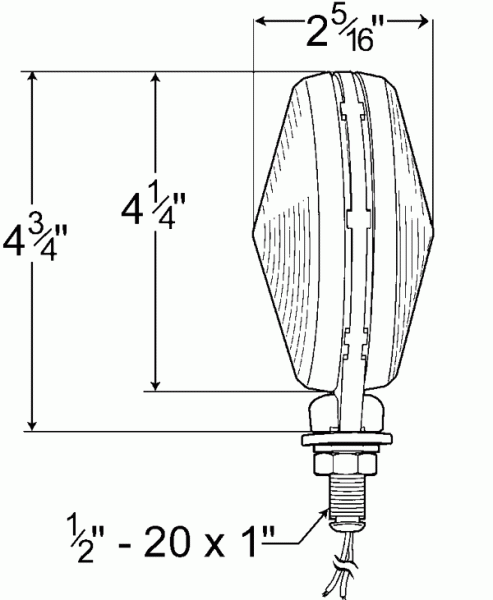

  • Grote product drawing - Thin-Line Double-Face Tail Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polycarbonate Housing
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Housing Color: Gray
  • Voltage: 12V
  • Amperage: .59A-2.1A
  • Mounting Type: Pedestal
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: I, P
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-013
  • Style: Thin-Line
  • Bulk Pack #50630-3: 0
Features & benefits
  • Easy snap-on lenses
  • Molded-in baffle and molded-in O-ring
  • Wire exit has a grommet to protect jacket against abrasion
Find a Local Distributor

Replacements, Tools & Accessories

Lens Red Stop Tail turn Replacement Lens
90232

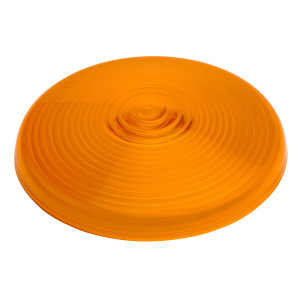

 Lens Amber Stop Tail turn Replacement Lens
90233

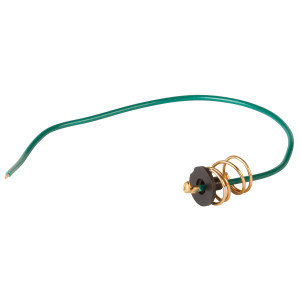

 Pigtail 9 1/2" Single Contact Socket Repair Assembly
68170

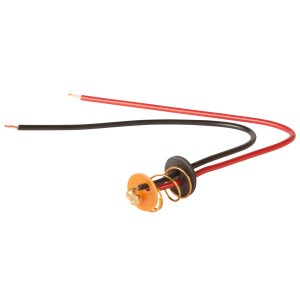

 Pigtail 7 1/2" Long Double Contact Socket Repair Assembly
68130
