Thin-Line Double-Face Light

Grote Loading Ajax Spinner

55220Single Contact

55220Single Contact

  • 55220 thumbnail

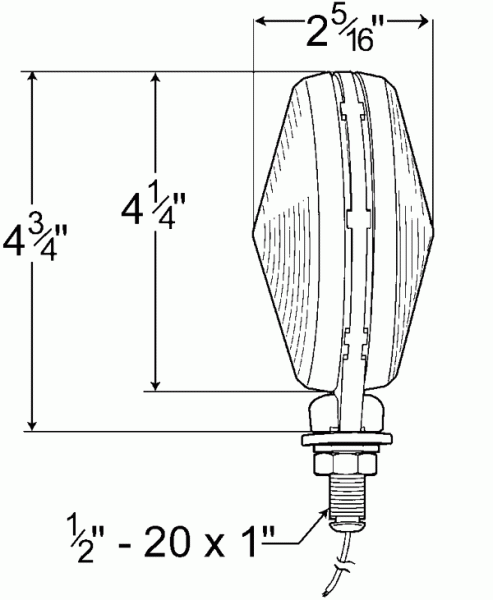

  • Grote product drawing - Single Contact Thin-Line Double-Face Light thumbnail
  • 55220 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polycarbonate Housing
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Housing Color: Gray
  • Voltage: 12 V
  • Amperage: 2.1 A
  • Mounting Type: Pedestal
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: I
  • Bulb: 1156, 32 CP
  • VMRS: 034-002-013
  • Product Type: Stop Tail Turn
  • Style: Thin-Line
  • Shape: Round
  • Warranty: 1 Year
  • Bulk Pack #55220-3: 0
Features & benefits
  • Easy snap-on lenses
  • Molded-in baffle and molded-in O-ring
  • Wire exit has a grommet to protect jacket against abrasion
Find a Local Distributor

Replacements, Tools & Accessories

Lens 90232
90232
 Lens 90233
90233
 Pigtail 68170
68170
 Pigtail 68130
68130
