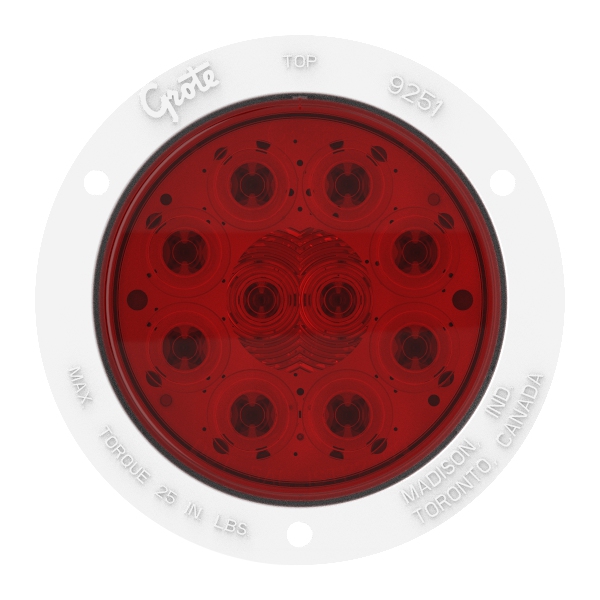

SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

53282STT, White Theft-Resistant Flange, Male Pin

53282STT, White Theft-Resistant Flange, Male Pin

  • 53282 360 thumbnail
  • 53282 thumbnail

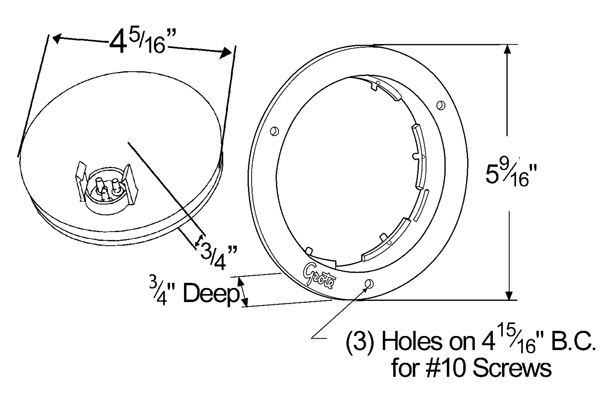

  • Grote product drawing - SuperNova® 4" 10-Diode Pattern LED Stop/Tail/Turn Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, PC/ABS Housing, Polycarbonate Flange
  • Color: Red
  • Lens Color: Red
  • Housing Color: Gray
  • Voltage: 12 V
  • Amperage: 0.03–0.24 A
  • Mounting Type: Flange Mount
  • Connection Type: Male Pin
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • VMRS: 034-002-259
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Lens design spreads light for maximum dispersion
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
