SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

53553Hard Shell Connector, Auxiliary Turn

53553Hard Shell Connector, Auxiliary Turn

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights Hard Shell Connector, Auxiliary Turn 360 thumbnail
  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights Hard Shell Connector, Auxiliary Turn thumbnail

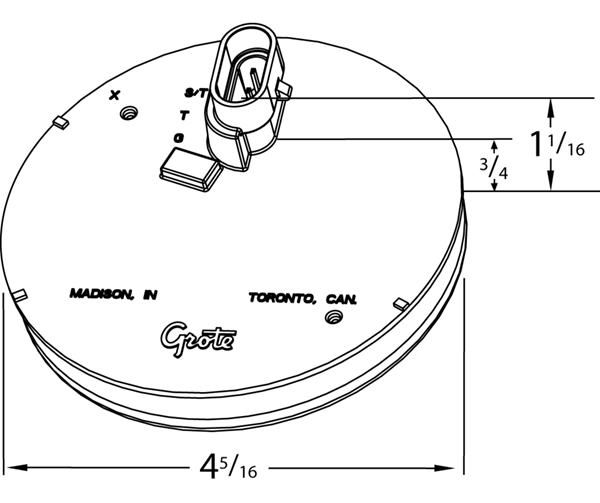

  • Grote product drawing - LED Stop Tail Turn Light With Hard Shell Connector thumbnail

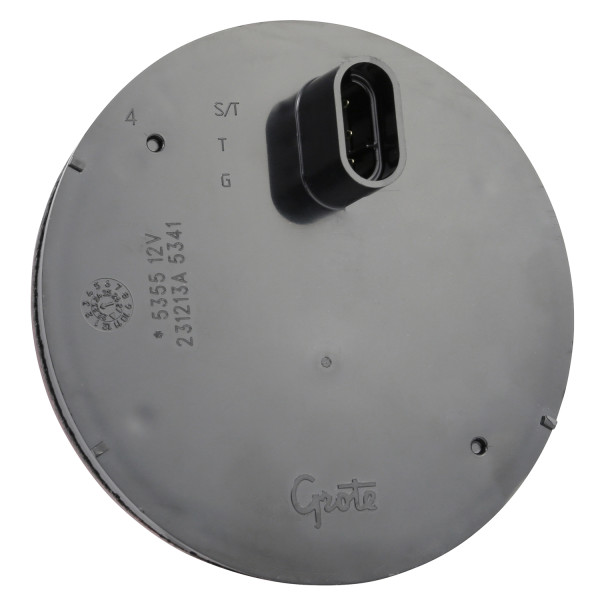

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Hard Shell Connector, Grommet Mount, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Product Line: SuperNova®
  • Voltage: 12V
  • Mounting Type: Grommet
  • Connection Type: Hard Shell
  • Lens Color: Amber
  • Shape: Round
  • Amperage: 0.15 A
  • Size: 4"
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, ABS Housing
  • Product Type: Auxiliary Turn
  • Diameter: 4"
  • Housing Color: Gray
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Lens design spreads light for maximum dispersion
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 93552
93552
 Bracket 51090
51090
 Grommet 91740
91740
 Grommet 91950
91950
 Pigtail STT 3-Wire 66815
66815
 Pigtail STT 3-Wire 67002
67002
 Pigtail STT 3-Wire 66841
66841
 Pigtail STT 3-Wire 66816
66816
 Pigtail STT 3-Wire 67005
67005
 Pigtail STT 3-Wire 66845
66845
 Accessory 66861
66861
 Bracket 92511
92511
 Bracket 93683
93683
 Bracket 43253
43253
 Bracket 92510
92510
 Bracket 92512
92512
 Bracket 43572
43572
 Bracket 43655
43655
 Bracket 43732
43732
 Bracket 93190
93190
 Bracket 93553
93553
 Accessory 66862
66862
