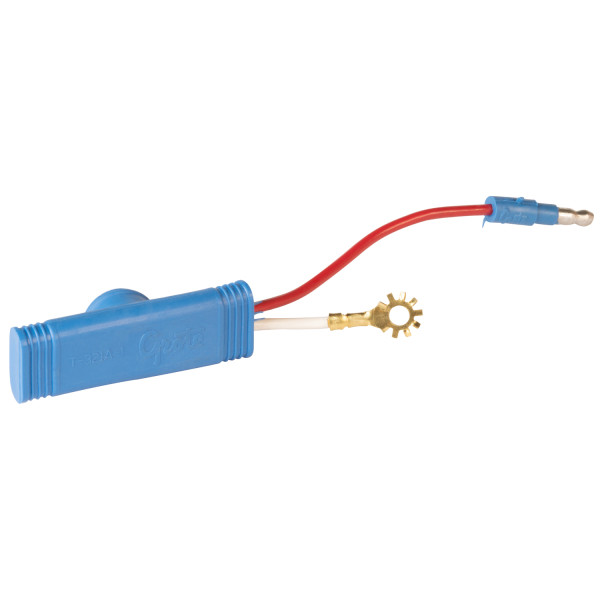

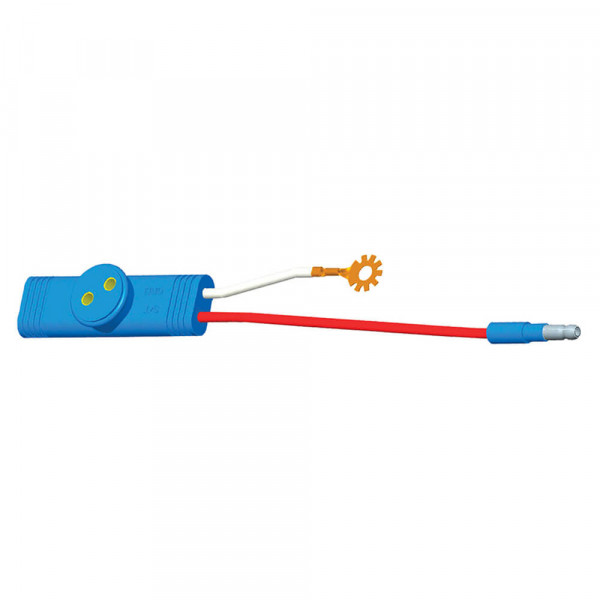

Sentry High-Mount Stop Pigtails

Grote Loading Ajax Spinner

669026"

669026"

  • 66902 thumbnail
  • 66902 - drawing thumbnail
  • 66902 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Sentry Light
  • Wire Material: GPT
  • Connector Quantity: 3
  • Connector Side One: Slim-Line .180" Male Bullet/Ring terminal
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet/Ring terminal, High-Mount

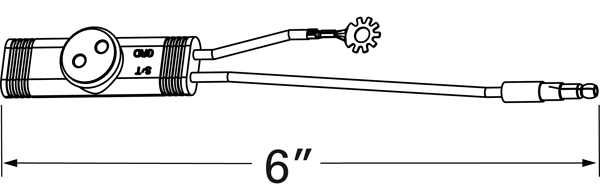

  • Length: 1/2 (6")
  • Wire Length: 5"
  • Fits: 54012 lamp
  • Pack Quantity: Individual (12), Bulk
  • VMRS: 034-004-042
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Fits 54012 lamp
  • O-ring resists moisture and corrosion
  • Sealing ring to lamp base
  • Slim-line .180" male connector
Find a Local Distributor

Replacements, Tools & Accessories

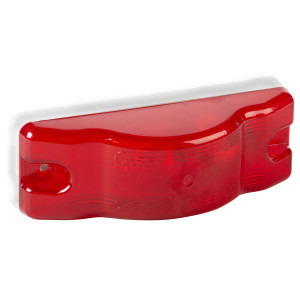

High-Mount Stop Light 54012
54012
 Side Turn Marker Lamp 53062
53062

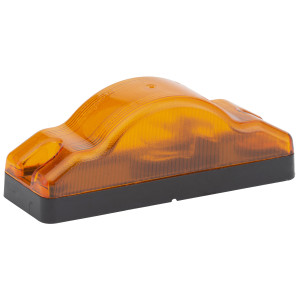

 Side Turn Marker Lamp 53163
