Midturn Adapter Pigtail

Grote Loading Ajax Spinner

66820Female-to-Female Pin

66820Female-to-Female Pin

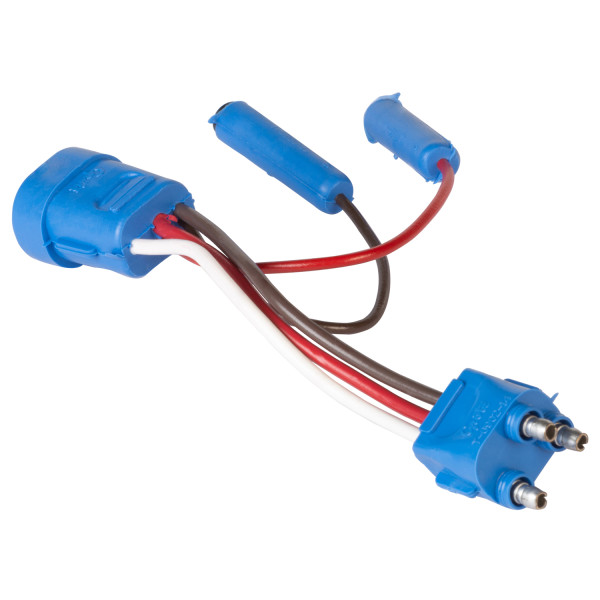

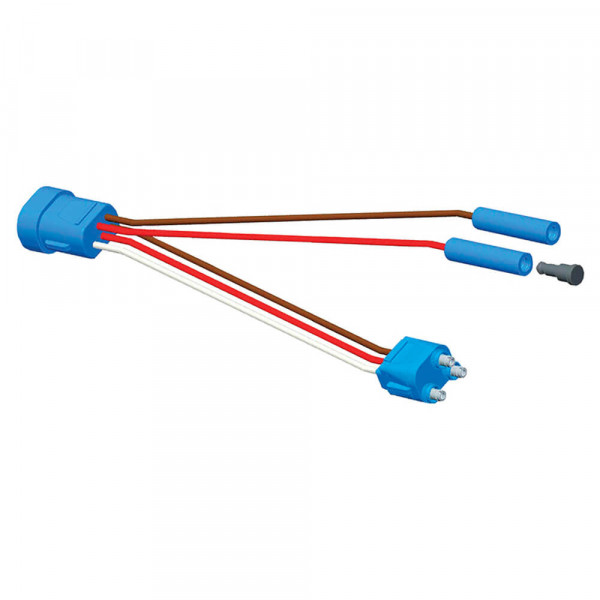

  • Midturn Adapter Pigtail, Adapter, Female-to-Female Pin, (2) Additional Standard .180 Receptacles thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Quantity: 4
  • Connector Side One: Female PL-3
  • Connector Side Two: Straight Male PL-3/Standard .180" Female Bullet
  • Wire Material: GPT
  • Wire Gauge: 18 GA
  • Connection Type: Female PL-3, Male PL-3/Standard .180" Female Bullet
  • Length: 6"
  • Wire Length: 5"
  • Fits: Female pin Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-002-031
  • # of Wires: 5
  • Style: Y-Adapter
Features & benefits
  • 6" midturn adapter harness, Female-to-Female Pin
  • For use with 4" round and oval S/T/T lamps
  • Dummy plug in brown female .180 receptacle
  • Factory-molded plugs for use with ULTRA-BLUE-SEAL® trailer wiring system
