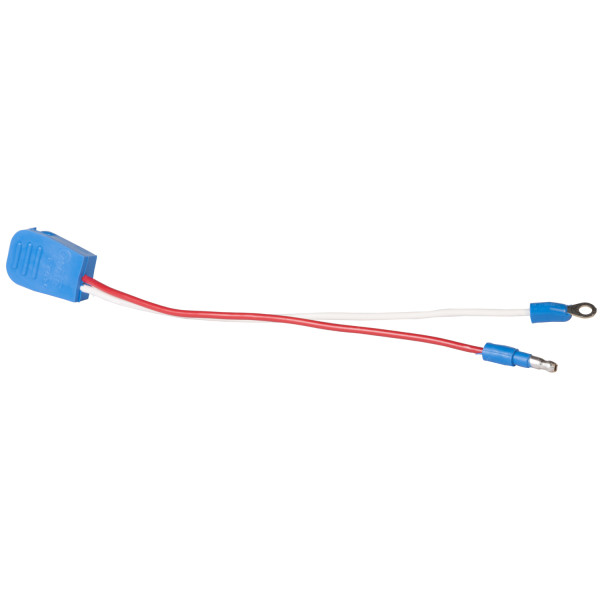

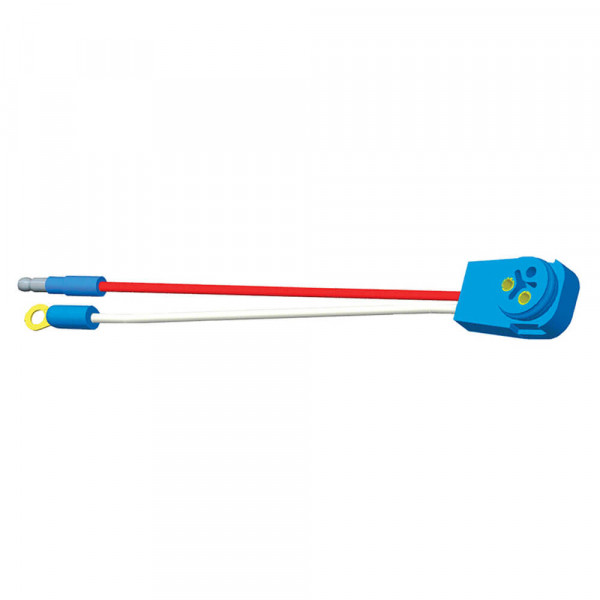

Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights

Grote Loading Ajax Spinner

6684610" Long

6684610" Long

  • Stop Tail Turn Two-Wire 90° Plug-In Pigtails for Male Pin Lights, 10" Long, Chassis Ground, Slim-Line .180 Male thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: 90 degree Male Pin
  • Wire Material: GPT
  • Connector Quantity: 4
  • Connector Side One: Slim-Line .180" Male Bullet/Ring terminal
  • Wire Gauge: 14 GA
  • Connection Type: Male Pin, Slim-Line .180" Male Bullet/Ring terminal
  • Length: 10"
  • Wire Length: 9"
  • Fits: 4" Round and Oval STT Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-002-031
  • Diameter: 4"
  • # of Wires: 2
  • Style: Pigtail
Features & benefits
  • Single function, Slim-Line .180 male
  • Single function, blunt-cut wires
  • O-ring seal resists moisture and corrosion
  • 90° plug for reduced clearance applications
  • Grease grooves for additional sealing protection
  • Factory-molded plugs for use with quality ULTRA-BLUE-SEAL® trailer wiring system
Find a Local Distributor

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in
2 wire pigtail for female pin lights

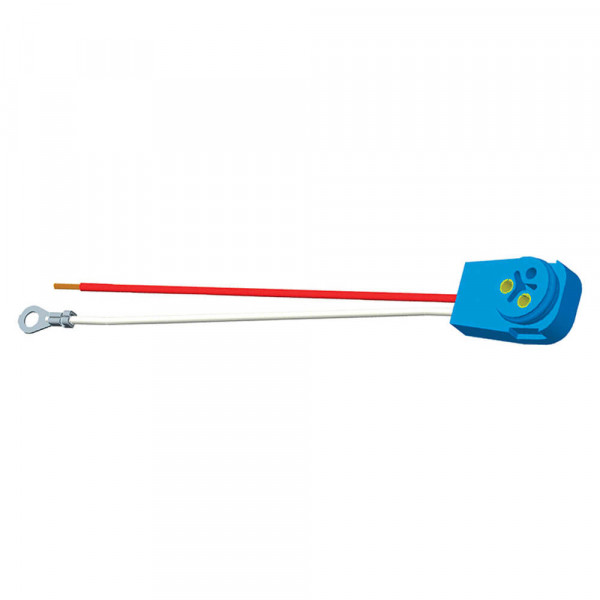

Two-Wire 90° Pigtail for Female Pin Lights
