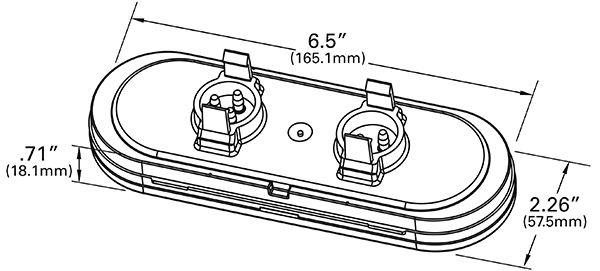

    6" Oval LED Stop Tail Turn Lights with Integrated Back-up

    The 6” Oval LED Stop/Tail/Turn and Back-up light seamlessly combines two separate lights. Symmetrical and sleek, the innovative 6” Oval LED lowers inventory and maintenance costs while saving space for other controls on box trucks, vocational trucks, and specialized vehicles. This light can also replace a Back-up light on power modules.
    Grote Loading Ajax Spinner

    54672Male Pin Termination

    54672Male Pin Termination

    • six inch oval LED stop tail turn with back up light thumbnail
    • thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, ABS Housing
    • Color: Red, Clear
    • Lens Color: Red/Clear
    • Housing Color: Black
    • Voltage: 12V
    • Amperage: .13A-.16A
    • Mounting Type: Grommet, Bracket
    • Connection Type: Male Pin
    • Size: 6"
    • Regulations: FMVSS 108
    • Functions: S, T, I, R(2)
    • VMRS: 034-002-059
    • Bulk Pack #54672-3: 16
    Features & benefits
    • Innovative patent-pending design combines all Stop/Tail/Turn and Back-up functions into one industry standard size lamp.
    • Industry-standard design fits existing mounting grommets, brackets, and flanges.
    • Symmetrical design meets legal requirements at any mounting angle.
    • LED technology provides less maintenance costs and long life.
    • Reduces inventory, SKUs, and carrying costs.
