6" Oval LED Stop Tail Turn Lights with Integrated Back-up

The 6” Oval LED Stop/Tail/Turn and Back-up light seamlessly combines two separate lights. Symmetrical and sleek, the innovative 6” Oval LED lowers inventory and maintenance costs while saving space for other controls on box trucks, vocational trucks, and specialized vehicles. This light can also replace a Back-up light on power modules.
Grote Loading Ajax Spinner

54682Female Pin Termination

54682Female Pin Termination

  • six inch oval led stop tail turn with back up light thumbnail

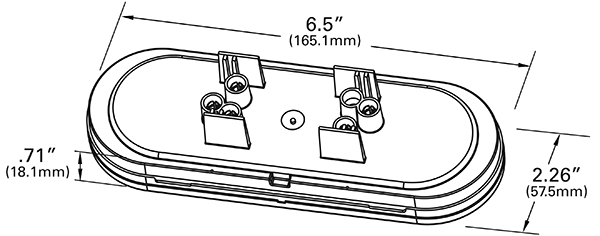

  • six inch oval led stop tail turn with back up light drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red, Clear
  • Lens Color: Red/Clear
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .13A-.16A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Female Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: S, T, I, R(2)
  • VMRS: 034-002-059
  • Bulk Pack #54682-3: 16
Features & benefits
  • Innovative patent-pending design combines all Stop/Tail/Turn and Back-up functions into one industry standard size lamp.
  • Industry-standard design fits existing mounting grommets, brackets, and flanges.
  • Symmetrical design meets legal requirements at any mounting angle.
  • LED technology provides less maintenance costs and long life.
  • Reduces inventory, SKUs, and carrying costs.
Find a Local Distributor

Replacements, Tools & Accessories

Pigtail BU 2-Wire Two-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut, Straight
67010
 Pigtail BU 2-Wire Two-Wire Plug-In Pigtails for Female Pin Lights, 10" Long, Chassis Ground, Blunt Cut, 90° Plug
67014
 Pigtail BU 2-Wire
67020
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 6" Long, Chassis Ground, Slim-Line .180 Male
66812
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
66825
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
67000
 Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
66811
 Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
66843
 Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
66844
 Pigtail STT 3-Wire
67090

Application photos

4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck
