Torsion Mount® III Oval Stop Tail Turn Lights

Grote Loading Ajax Spinner

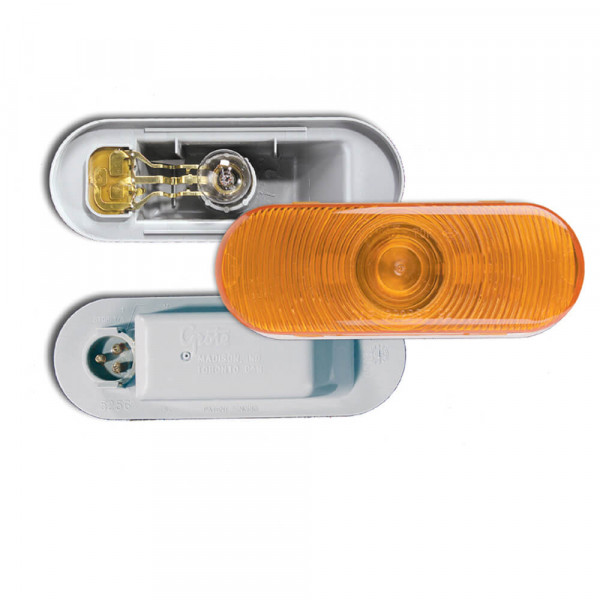

52563Front Park, Male Pin, Amber Turn

52563Front Park, Male Pin, Amber Turn

  • 52563 360 thumbnail
  • 52563 thumbnail

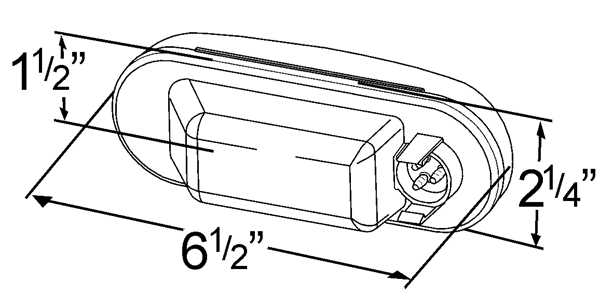

  • Grote product drawing - Amber Turn, Front Park Oval Light with Male Pin thumbnail
  • 52563 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

54163
SuperNova® NexGen™ Oval LED Stop Tail Turn Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Gray
  • Voltage: 12 V
  • Amperage: 0.59–2.1 A
  • Mounting Type: Grommet
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-058
  • Product Type: Front Park/Turn Light
  • Product Line: Torsion Mount®
  • Shape: Oval
  • Warranty: 1 Year
Features & benefits
  • Torsion Mount® III, Gel-Mount® bulb cradle design minimizes bulb vibration
  • Locking tabs ensure solid pigtail connection
