Torsion Mount® III Oval Stop Tail Turn Lights

Grote Loading Ajax Spinner

52562Male Pin

52562Male Pin

  • 52562 360 thumbnail
  • 52562 thumbnail

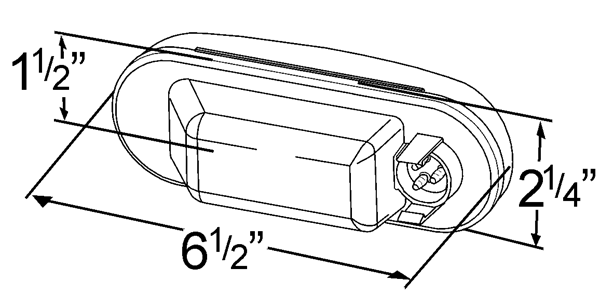

  • Grote product drawing - torsion mount III oval stop tail turn light male pin thumbnail
  • 52562 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

54162
SuperNova® NexGen™ Oval LED Stop Tail Turn Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Gray
  • Voltage: 12V
  • Amperage: .59A-2.1A
  • Mounting Type: Grommet
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: I, P2, S, T
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-058
  • Product Type: Stop Tail Turn
  • Product Line: Torsion Mount®
  • Shape: Oval
  • Warranty: 1 Year
Features & benefits
  • Torsion Mount® III, Gel-Mount® bulb cradle design minimizes bulb vibration
  • Locking tabs ensure solid pigtail connection
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43362
43362
 Bracket 43952
43952
 Bracket 43220
43220
 Bracket 43222
43222
 Bracket 43223
43223
 Bracket 43723
43723
 Grommet 92420
92420
 Pigtail STT 3-Wire 66815
66815
 Pigtail STT 3-Wire 66841
66841
 Pigtail STT 3-Wire 66816
66816
 Pigtail STT 3-Wire 67005
67005
 Pigtail STT 3-Wire 66845
66845

Customer reviews

  • 52892

    I have been using these lights (1157 bulb) for 8 or 10 years (or longer) with no problems. My son talked me into going to LED replacements, so I did, and within 3 weeks the individual LEDs started malfunctioning. I don't think the technology is there yet, with LEDs, (because of the heat dissipation & condensation) to enable long life. So I am back to incandescent and halogen bulbs. Newer is not always better. Thanks for the great product. P.S. Our 4 wheel drive club is getting away from LEDs & going back to "old school lights".
