SuperNova® NexGen™ Oval LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54163Male Pin, Amber

54163Male Pin, Amber

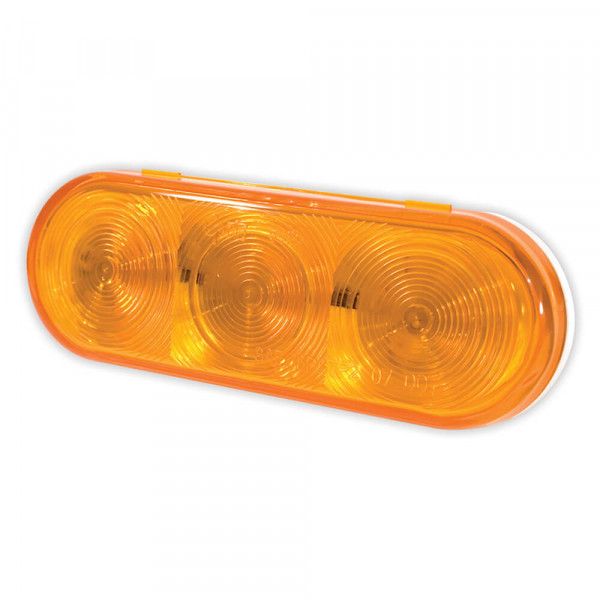

  • SuperNova® Amber Oval LED Stop Tail Turn Light. 360 thumbnail
  • SuperNova® Amber Oval LED Stop Tail Turn Light. thumbnail

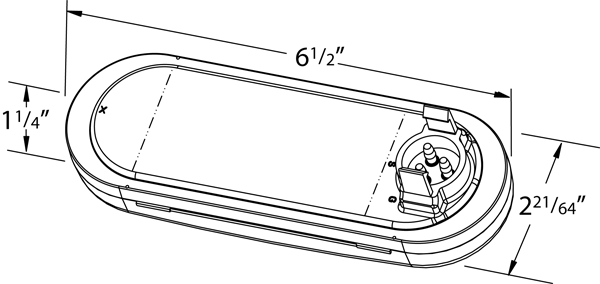

  • Grote product drawing - SuperNova® Oval LED Stop Tail Turn Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Voltage: 12V
  • Mounting Type: Grommet, Bracket
  • Connection Type: Male Pin
  • Lens Color: Amber
  • Amperage: .03A-.05A
  • Size: 6"
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, ABS Housing
  • Housing Color: White
Features & benefits
  • Fits current mounting flanges and grommets
  • Encapsulated with epoxy for protection from the environment
  • Grote OEM male pin and hardwire for easy retrofit or replacement
Find a Local Distributor

Replacements, Tools & Accessories

Adapter Pigtail Adapter Plugs for Hard Shell Connectors, 6" Long, Competitive Harness to Male Pin Connector
67006
 Adapter Pigtail Two Light 9" Y Adapter Pigtail, Adapter, Male-to-Male Pin, Straight
66813
 Adapter Pigtail Midturn Adapter Pigtail, Adapter, Male-to-Male Pin, (2) Additional Standard .180 Receptacles
66823
 Adapter Pigtail Adapter Plug, 6" Long, Female Pin to Male Pin Termination
66830
 Adapter Pigtail Adapter Plug, 6" Long, Female Pin to 90° Male Pin Termination
66836
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
43220
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
43222
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
43223
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
43723
 Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
43362
 Bracket "Z" Mounting Bracket For Oval Light
43952
 Bracket Mounting Bracket For 6" Oval Lights, Black
43172
 Bracket Mounting Bracket For Oval Lights, Black
43100
 Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Polycarbonate, Black
42152
 Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
42153
 Grommet Grommet For 6" Oval Lights, Open Grommet
92420
 Grommet Grommet For 6" Oval Lights, Closed Back
92720
 Pigtail STT 3-Wire 66815 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return, Slim-Line .180 Male
66815
 Pigtail STT 3-Wire 67002 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
67002
 Pigtail STT 3-Wire 66841 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
66841
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
66816
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
67005
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
66845
