SuperNova® 9-Diode Oval LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54143Hard Shell Connector, Amber

54143Hard Shell Connector, Amber

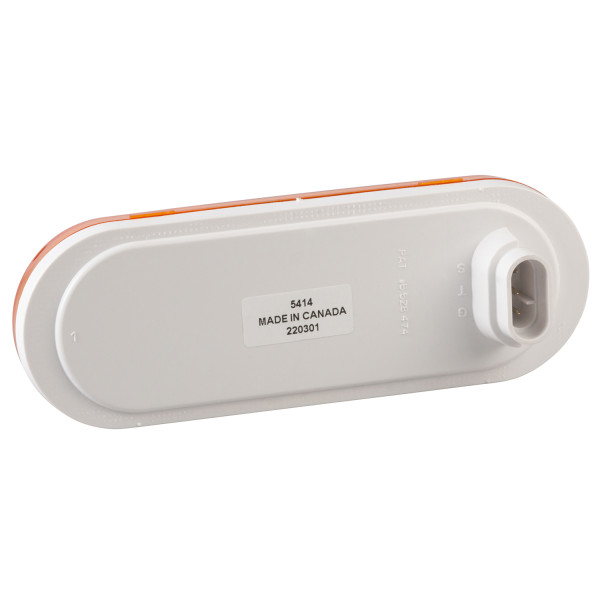

  • Amber 9-Diode Oval LED Stop Tail Turn Light with Hard Shell Connecter thumbnail
  • thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .06A-.18A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Hardshell

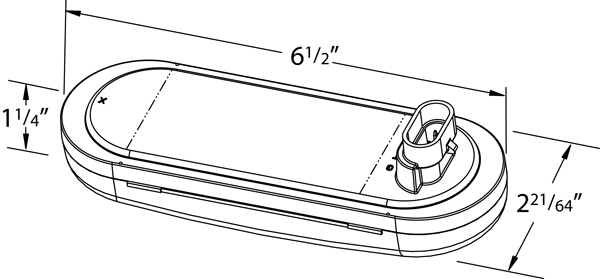

  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-002-059
Features & benefits
  • Available in Grote OEM male pin and hard shell connection options for easy retrofit or replacement
  • Fits current mounting flanges and grommets
  • Electronics completely encapsulated with durable epoxy for maximum protection from the environment
Find a Local Distributor

Replacements, Tools & Accessories

Accessory Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
42153
 Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
43362
 Bracket "Z" Mounting Bracket For Oval Light
43952
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
43220
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
43223
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
43222
 Bracket Mounting Bracket For Oval Lights, Black
43100
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
43723
 Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Polycarbonate, Black
42152
 Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
42153
 Bracket Stainless Steel Security Ring
42103
 Grommet Grommet For 6" Oval Lights, Open Grommet
92420
 Grommet Grommet For 6" Oval Lights, Closed Back
92720
 Pigtail STT 3-Wire Hard-Shell Connector Pigtail, 11" Long, Chassis Ground, Blunt Cut Wires, Dual Function
66861
 Pigtail STT 3-Wire Hard-Shell Connector Pigtail, 11" Long, Chassis Ground, Blunt Cut Wire, Single Function
66862
 Pigtail STT 3-Wire 66815 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return, Slim-Line .180 Male
66815
 Pigtail STT 3-Wire 67002 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wire
67002
 Pigtail STT 3-Wire 66841 - Stop Tail Turn Three-Wire Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
66841
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 6" Long, Ground Return System, Slim-Line .180 Male
66816
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 11" Long, Chassis Ground, Blunt Cut Wires
67005
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Male Pin Lights, 8" Long, Chassis Ground, Slim-Line .180 Male
66845
