Sealed Marker Light Pigtails

Grote Loading Ajax Spinner

66801Single Seal, Ground Return, 6" Wire

66801Single Seal, Ground Return, 6" Wire

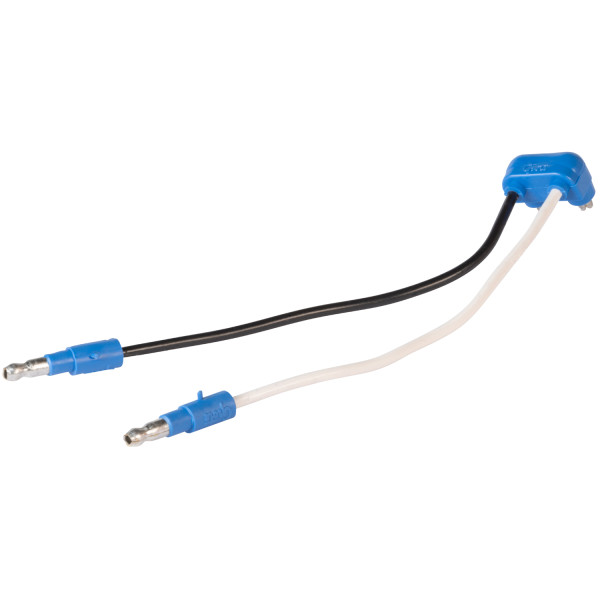

  • 66801 thumbnail

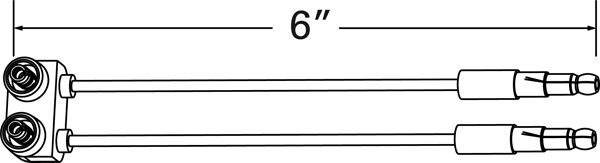

  • 66801 - drawing thumbnail

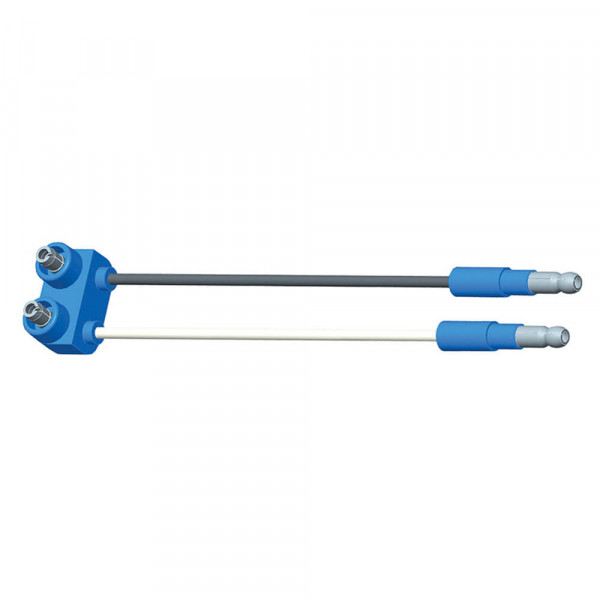

  • 66801 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: PL-10
  • Wire Material: GPT
  • Connector Quantity: 3
  • Connector Side One: Slim-Line .180" Male Bullet
  • Gauge: 14-2 GA
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet, PL-10
  • Length: 6"
  • Wire Length: 5"
  • Fits: 2" and 2 1/2" Round marker Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-042
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Sealed to resist corrosion
  • Slim-line .180" male connector
  • Factory-molded plugs for use with ULTRA-BLUE-SEAL
  • Fits 2", 2½" round, and beehive-style LED and incandescent lamps
