3" Clearance Marker Lights

Grote's rectangular 3" Clearance Marker Lights fit narrow applications and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

46413

46413

  • 46413 360 thumbnail
  • 46413 thumbnail
  • 46413 - drawing thumbnail
  • 46413 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

47083
3" SuperNova® LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10

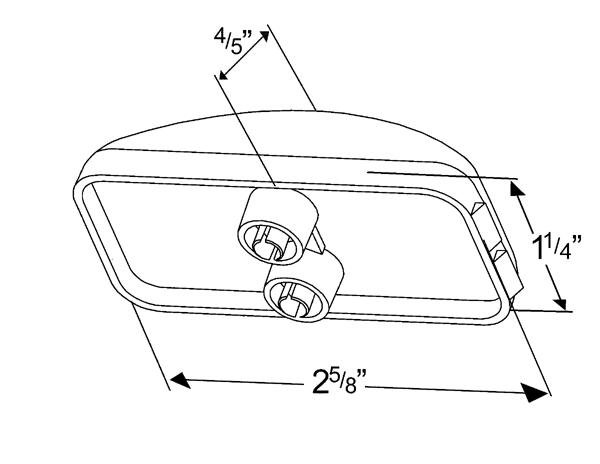

  • Size: 3"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 1 Year
  • Bulk Pack #46413-3: 50
Features & benefits
  • Uses double-seal UBS pigtail
  • Meets PC function only when mounted at a 45° angle
  • Hermetic lens-to-housing seal
  • Rectangular shape fits narrow applications
  • 12-volt version features a 12,000+ hour bulb
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43370
43370
 Bracket Bracket For Small Rectangular Lights, Gray Kit
43970
 Bracket 43980
43980
 Bracket Header-Mount Bracket For Small Rectangular Lights, White
42141
 Bracket 43380
43380
 Grommet 91380
91380
 Pigtail 66851
66851
 Pigtail 66850
66850
 Pigtail 67001
67001
 Pigtail 66800
66800
 Pigtail 66801
66801
 Pigtail 66840
66840
 Pigtail 67050
67050
