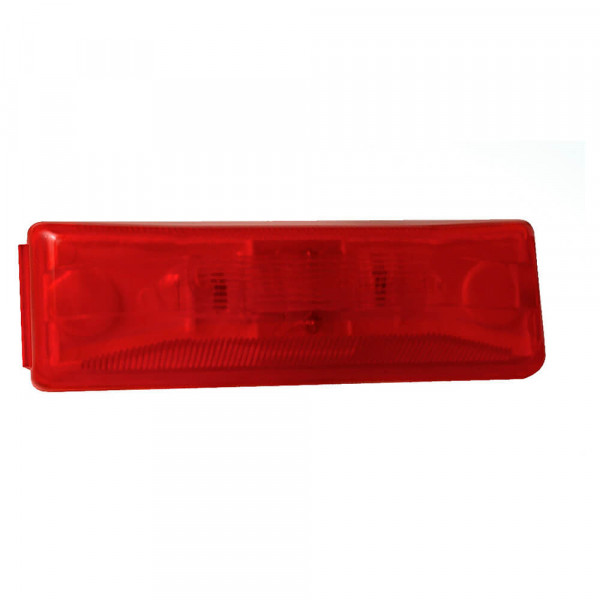

Rectangular Clearance Marker Lights

Grote's Rectangular Clearance Marker Lights are rectangular with double bulbs for narrow mounting applications. Meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

4674212V, Red

4674212V, Red

  • clearance light red 360 thumbnail
  • clearance light red thumbnail

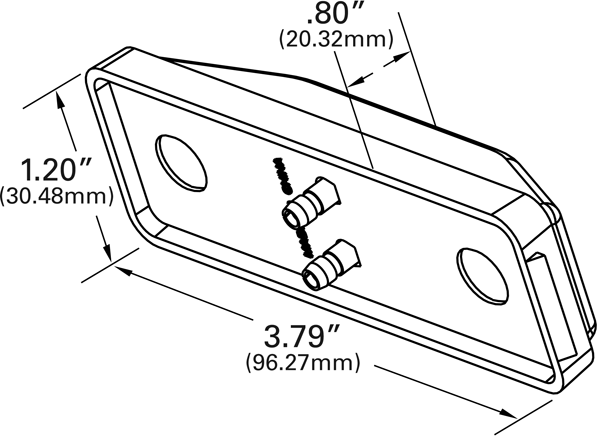

  • 46742 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

G1902
Hi Count® 3-Diode LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .66A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: P2, PC, P3
  • Bulb: (2) 2 CP
  • VMRS: 034-004-021
  • Bulk Pack #46742-3: 50
Features & benefits
  • Hermetic lens-to-housing seal
  • Narrow mounting applications
  • Meets PC function only when mounted at a 45° angle
  • Uses double-seal UBS pigtail
  • Rectangular, double bulb lamp
Find a Local Distributor

Replacements, Tools & Accessories

Accessory Light Guard For Small Rectangular Lights, Aluminum
43120
 Bracket Mounting Bracket For Large Rectangular Lights, Gray
43780
 Bracket Mounting Bracket For Large Rectangular Lights, Chrome Plated
43783
 Bracket Low Profile Mounting Bracket, Gray
43850
 Pigtail Clearance Marker Pigtail, 6" Long, Chassis Ground, Slim-Line .180 Male
66980
 Pigtail Clearance Marker Pigtail, 8" Long, Ground Return
66982
 Pigtail Clearance Marker Pigtail, 6" Long, Universal Replacement, Blunt Cut, Ring Terminal Grommet
66981

Customer reviews

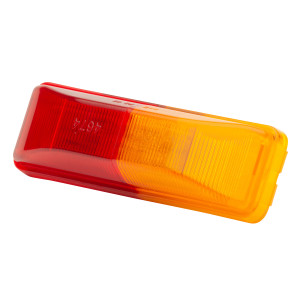

  • 46740
