Sealed Turtleback® II Clearance Marker Lights

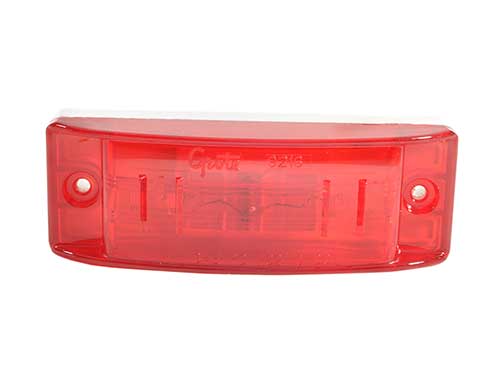

Grote's Sealed Turtleback® II Clearance Marker Lights are sealed with shock-absorbing, heat-resistant lenses and lamp bases. Each of these 12-volt lamps feature two 12,000+ hour bulbs and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

46832Optic Lens

46832Optic Lens

  • sealed turtleback ii clearance marker light optic red 360 thumbnail
  • sealed turtleback ii clearance marker light optic red thumbnail

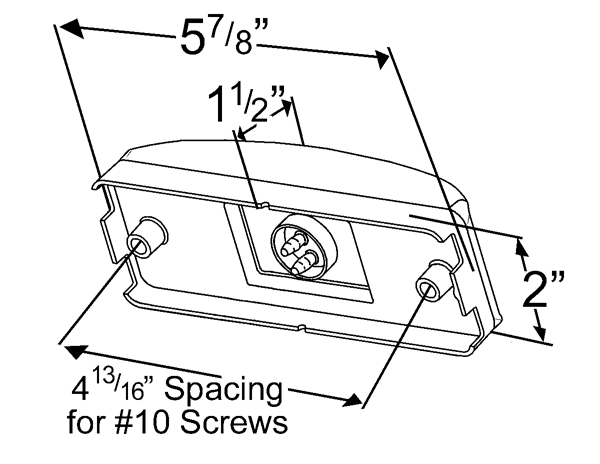

  • 46832 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

47162
SuperNova® Sealed Turtleback® II LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .66A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: P2, PC, P3
  • Bulb: (2) 2 CP
  • VMRS: 034-004-021
  • Bulk Pack #46832-3: 150
Features & benefits
  • Two 12,000+ hour bulbs
  • Meets PC function only when mounted at a 45° angle
  • Hermetic lens-to-housing seal
  • Turtleback® lens design for maximum durability
  • Shock-absorbing, heat-resistant lens and lamp base

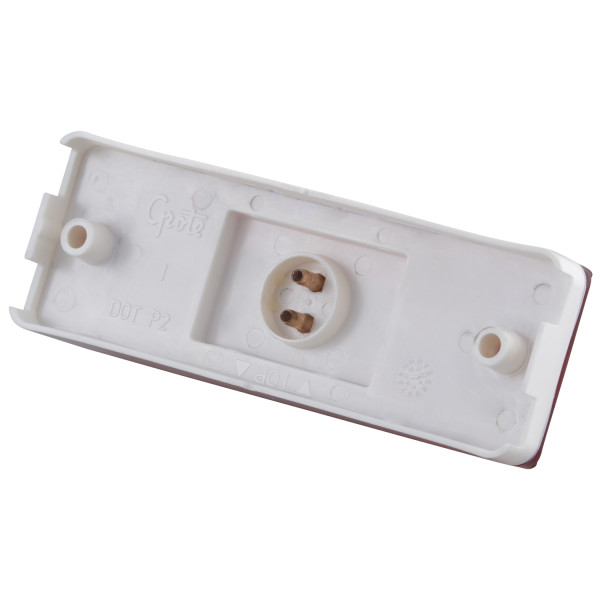

  • Waterproof male pin connections accept UBS pigtail
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 4 3/4" Corner Radius Bracket, Gray
43050
 Pigtail Double-Seal Lamp Pigtail, 6" Long, Chassis Ground
66910
 Pigtail Double-Seal Lamp Pigtail, 6" Long
66911
 Pigtail Turtleback® II Double-Seal Lamp Pigtail, 2 1/2" Long
67070
 Pigtail Turtleback® II Double-Seal Light Pigtail, Two-Wire, Standard .180 Male
67071
