Hi Count® 2 1/2" 9-Diode LED Clearance Marker Lights

Grote's Hi Count® 2 1/2" 9-Diode LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.
Grote Loading Ajax Spinner

G1092

G1092

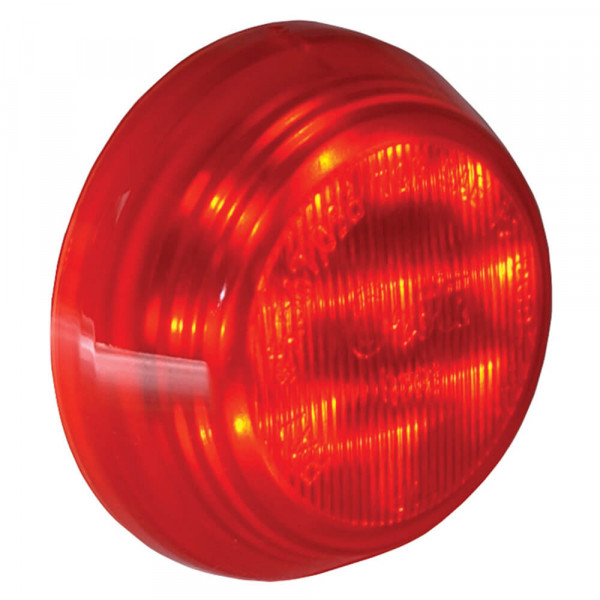

  • hi count 9 diode led clearance marker light red 360 thumbnail
  • hi count 9 diode led clearance marker light red thumbnail
  • Grote product drawing - 9 diode led clearance marker light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Red
  • Amperage: .04A
  • Size: 2½"
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Diameter: 2.5"
  • Housing Color: White
Features & benefits
  • Hermetic lens to housing seal
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Twist-In Surface Mount Bracket, Gray
43690
 Grommet 2 25/32" Hole Grommet, Closed Back Grommet
92070
 Grommet Grommet For Surface Or Flush Mount Lights, Open Grommet
91890
 Grommet 45º Angled Beveled-Edge Mounting Grommet, Open Grommet
91880
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
66851
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
66850
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67001
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67050
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
66800
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
66840
 Grommet 3" Hole Grommet, Open Grommet
91410
 Grommet 2 25/32" Hole Grommet, Open Grommet
91400
 Bracket Theft-Resistant Mounting Flange
43160
 Bracket Theft-Resistant Mounting Flange & Pigtail Retention Cap For 2 1/2" Round Lights, Mounting Flange, Black
43162
 Bracket Theft-Resistant Mounting Flange & Pigtail Retention Cap For 2 1/2" Round Lights, Mounting Flange, Chrome
43163
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (2 25/32" Hole)
43512
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (3" Hole)
43522
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket Mounting Bracket With Grommet For 2 1/2" Round Lights, Gray
93750
 Bracket Twist-In Surface Mount Bracket For 2" & 2 1/2" Round Lights, Gray
42180
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
66801
