SuperNova® 2 1/2" PC Rated, LED Clearance Marker Lights

With optic lenses to optimize photometric performance and broaden light patterns, Grote's SuperNova® 2 1/2" PC Rated, LED Clearance Marker Lights consist of hermetic lens-to-housing seal and encapsulant potting for total circuit board protection. These lights use the same UBS double-seal pigtail as incandescent for a quick Plug-and-Go® Retrofit as well as tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths. Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer.
Grote Loading Ajax Spinner

47232

47232

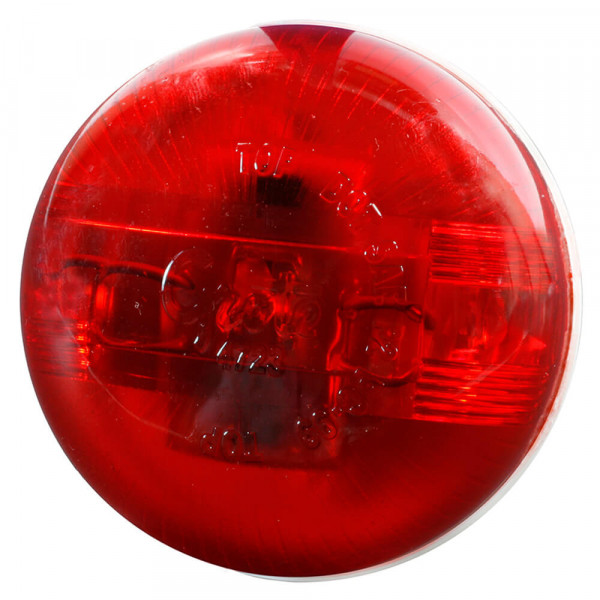

  • red super nova 2 half pc led marker light thumbnail

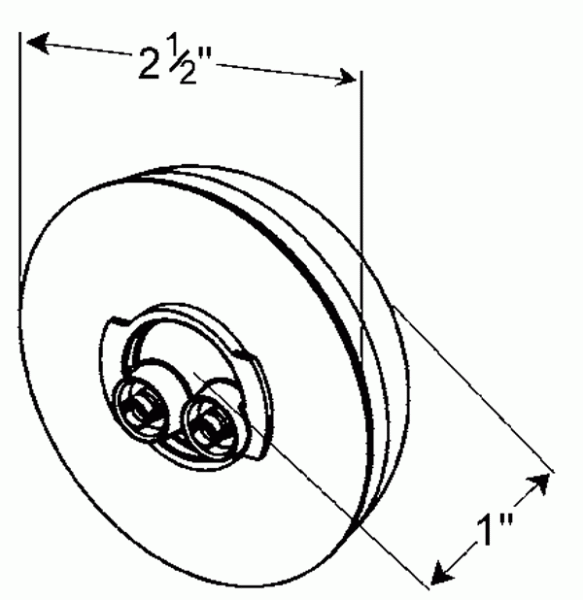

  • 47232 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Add more products to compare

Technical specifications
  • Color: Red
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Red
  • Amperage: .06A
  • Size: 2½"
  • Functions: P2, PC, P3
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Diameter: 2.5"
  • Housing Color: White
Features & benefits
  • Uses same UBS double seal pigtail as incandescent for a quick Plug-and-Go® retrofit
  • Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer
  • Hermetic lens to housing seal
  • Encapsulant potting for total circuit board protection
  • Optic lens optimizes photometric performance and broadens light pattern
  • Tin-plated, solid brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths

Replacements, Tools & Accessories

Bracket Twist-In Surface Mount Bracket, Gray
43690
 Bracket Theft-Resistant Mounting Flange
43160
 Bracket Theft-Resistant Mounting Flange & Pigtail Retention Cap For 2 1/2" Round Lights, Mounting Flange, Black
43162
 Bracket Theft-Resistant Mounting Flange & Pigtail Retention Cap For 2 1/2" Round Lights, Mounting Flange, Chrome
43163
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (2 25/32" Hole)
43512
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (3" Hole)
43522
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket Mounting Bracket With Grommet For 2 1/2" Round Lights, Gray
93750
 Bracket Twist-In Surface Mount Bracket For 2" & 2 1/2" Round Lights, Gray
42180
 Grommet 2 25/32" Hole Grommet, Open Grommet
91400
 Grommet 3" Hole Grommet, Open Grommet
91410
 Grommet 2 25/32" Hole Grommet, Closed Back Grommet
92070
 Grommet Grommet For Surface Or Flush Mount Lights, Open Grommet
91890
 Grommet 45º Angled Beveled-Edge Mounting Grommet, Open Grommet
91880
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
66851
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
66850
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67001
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67050
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
66800
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
66840
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
66801
