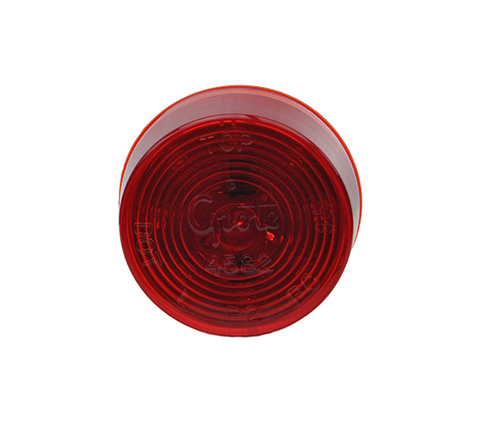

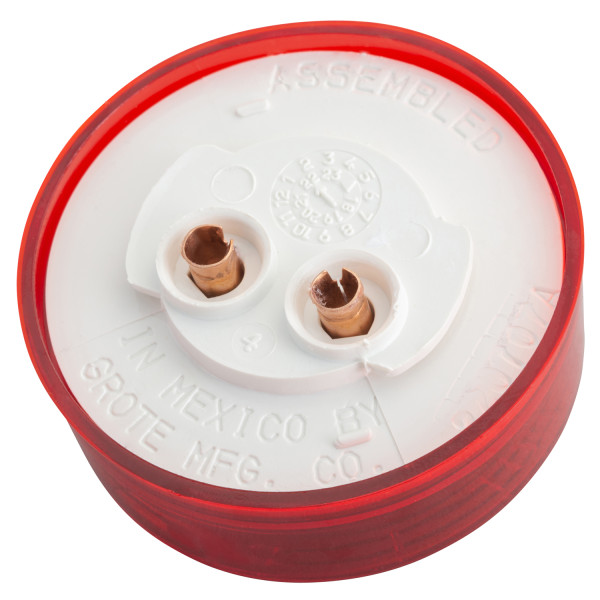

    Hi Count® 2" 9-Diode LED Clearance Marker Lights

    Grote's Hi Count® 2" 9-Diode LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.
    Grote Loading Ajax Spinner

    G3003Yellow

    G3003Yellow

    • hi count 9 led clarance marker ligh yellow 360 thumbnail
    • hi count 9 led clarance marker ligh yellow thumbnail

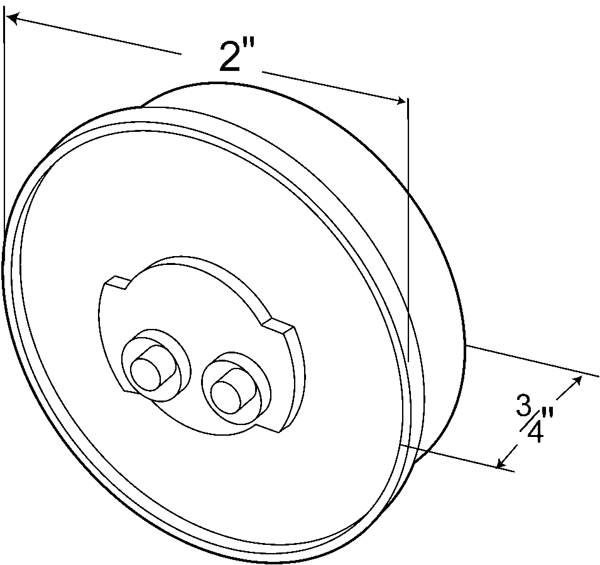

    • g3003-5 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Color: Yellow
    • VMRS: 034-004-253
    • Mounting Type: Grommet, Bracket
    • Connection Type: PL-10
    • Lens Color: Yellow
    • Amperage: .07A
    • Size: 2"
    • Functions: P2
    • Regulations: FMVSS 108
    • Material: Polycarbonate Housing, Polycarbonate Lens
    • Housing Color: White
    • Voltage: 12V
    • Bulk Pack #G3003-3: 48
    Features & benefits
    • Hermetic lens-to-housing seal
    • Twist-on mounting for easy installation
    • Fits all popular mountings and grommets
    • Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit

    Replacements, Tools & Accessories

    Bracket Twist-In Surface Mount Bracket, Gray
    43690
     Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
    49140

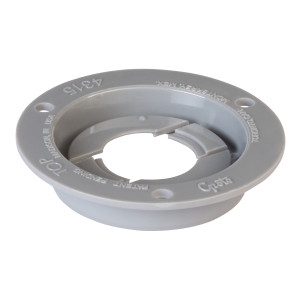

     Bracket Theft-Resistant Mounting Flange For 2" Round Lights, Gray
    43150
     Bracket Theft-Resistant Mounting Flange For 2" Round Lights, Black
    43152
     Bracket Theft-Resistant Mounting Flange For 2" Round Lights, Chrome
    43153
     Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (2 5/16" Hole)
    43532

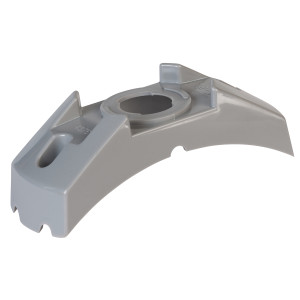

     Bracket 4 5/8" Corner Radius Bracket For 2" & 2 1/2" Round Lights, Gray
    43760
     Bracket Twist-In Surface Mount Bracket For 2" & 2 1/2" Round Lights, Gray
    42180

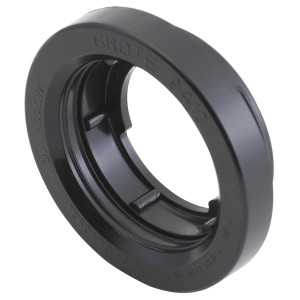

     Grommet 2 5/16" Hole Grommet, Open Grommet
    92120
     Grommet 2 5/16" Hole Grommet, Closed Back Grommet
    92150

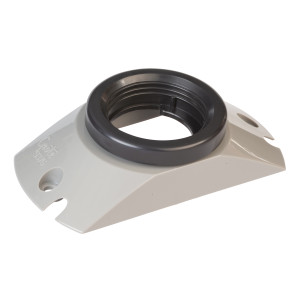

     Grommet Mounting Bracket With Grommet For 2" Round Lights, Gray
    93760
     Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
    66851
     Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
    66850
     Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
    67001
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
    67050
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
    66800
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
    66840
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
    66801

    Customer reviews

    • It doesn't look as though anyone has left a review for this product yet, be the first?
    Leave a review keyboard_arrow_right

    I consent to my data being processed and published by Grote Industries

    I would like to be added to the Grote Industries email marketing list.

    By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

    This is a response from the server

    Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
    rolling logo ajax spinner

    Please rate the selected product out of 5.

    Similar products you may be interested in
    hi count 9 diode led clearance marker light red

    Hi Count® 2 1/2" 9-Diode LED Clearance Marker Lights
    2 behive clearance marker light red retail

    2" Beehive Clearance Marker Lights
    supernova small aerodynamic LED cab marker light, yellow

    SuperNova® Small Aerodynamic LED Cab Marker Light
    m3 series clearance marker light red bolded bezel

    M3 Series Clearance Marker Lights

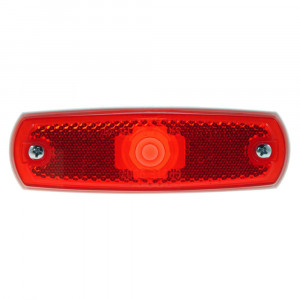

    supernova low profile led clearance marker light red

    SuperNova® Low-Profile LED Clearance Marker Lights
    red hi count 3 diode led clearance marker light

    3" Hi Count® 3-Diode LED Clearance Marker Lights
    beehive clearance marker light red

    2 1/2" Beehive Clearance Marker Lights
    supernova thin line led clearance marker light red

    SuperNova® 3" Thin-Line LED Clearance Marker Lights

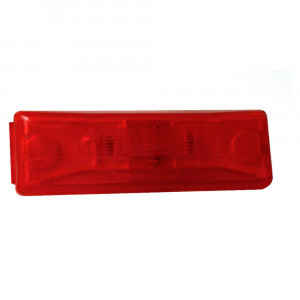

    clearance light red
