SuperNova® LED Clearance Marker Lights

Grote's SuperNova® LED Clearance Marker Lights have encapsulant potting for total circuit board protection and meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

47092

47092

  • supernova led clearance marker light p2 red thumbnail

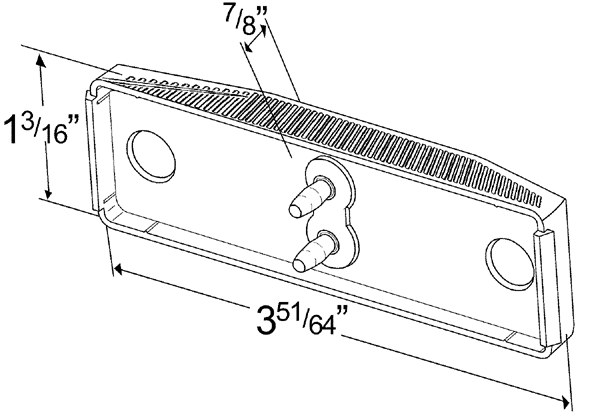

  • 47092 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Bulk Pack #47092-3: 48
Features & benefits
  • Hermetic lens-to-housing seal
  • Advanced pin connection system
  • Uses the same UBS double-seal pigtail
  • Meets PC function when mounted at a 45° angle
  • Encapsulant potting for total circuit board protection
  • Incandescent version for a quick Plug-and-Go® retrofit
