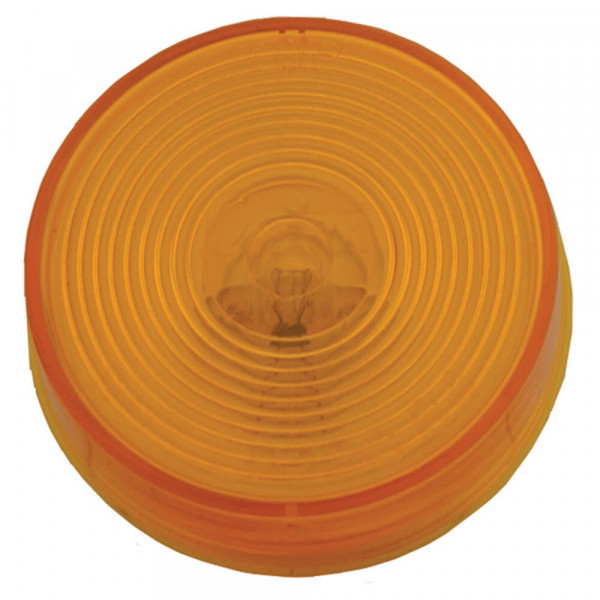

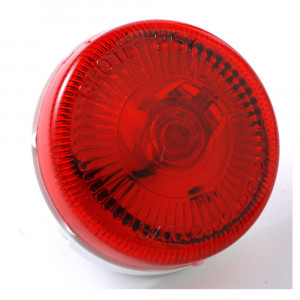

2 1/2" Round Clearance Marker Lights

With twist-on mounting for easy installation, Grote's 2 1/2" Round clearance marker lights fit all popular mounting and grommets.
Grote Loading Ajax Spinner

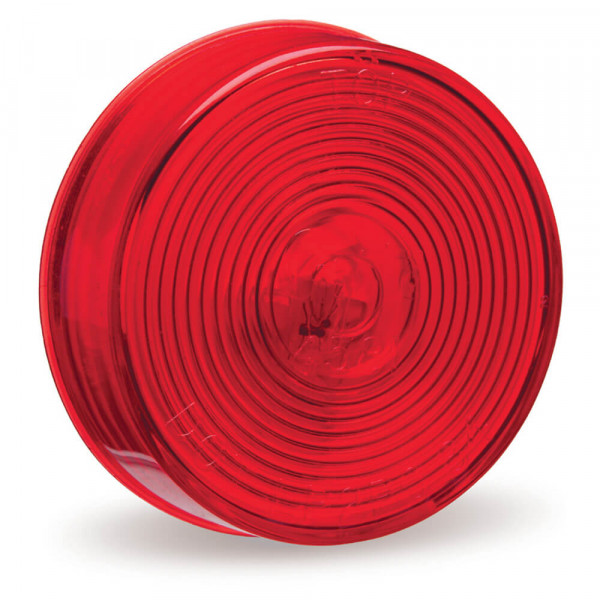

45812Optic Lens, 12V

45812Optic Lens, 12V

  • 2 1/2 clearance marker light optic red 360 thumbnail
  • 2 1/2 clearance marker light optic red thumbnail
  • 45812 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

G1032
Hi Count® 2 1/2" LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2½"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Diameter: 2.5"
  • Bulk Pack #45812-3: 48
Features & benefits
  • Features a 12,000+ hour bulb
  • 12-volt version features a 12,000+ hour bulb
  • Hermetic lens to housing seal
  • Optic version only, meets PC function only when mounted at a 45° angle
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Twist-In Surface Mount Bracket, Gray
43690
 Bracket Theft-Resistant Mounting Flange
43160
 Bracket Theft-Resistant Mounting Flange & Pigtail Retention Cap For 2 1/2" Round Lights, Mounting Flange, Black
43162
 Bracket Theft-Resistant Mounting Flange & Pigtail Retention Cap For 2 1/2" Round Lights, Mounting Flange, Chrome
43163
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (2 25/32" Hole)
43512
 Bracket Mounting Bracket For 2" & 2 1/2" Round Lights, (3" Hole)
43522
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket Mounting Bracket With Grommet For 2 1/2" Round Lights, Gray
93750
 Bracket Twist-In Surface Mount Bracket For 2" & 2 1/2" Round Lights, Gray
42180
 Grommet 2 25/32" Hole Grommet, Open Grommet
91400
 Grommet 3" Hole Grommet, Open Grommet
91410
 Grommet 2 25/32" Hole Grommet, Closed Back Grommet
92070
 Grommet Grommet For Surface Or Flush Mount Lights, Open Grommet
91890
 Grommet 45º Angled Beveled-Edge Mounting Grommet, Open Grommet
91880
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
66851
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
66850
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67001
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67050
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
66800
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
66840
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
66801
