SuperNova® 3" Thin-Line LED Clearance Marker Lights

Grote's SuperNova® 3" Thin-Line LED Clearance Marker Lights with encapsulant potting for total circuit-board protection. Meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

47242

47242

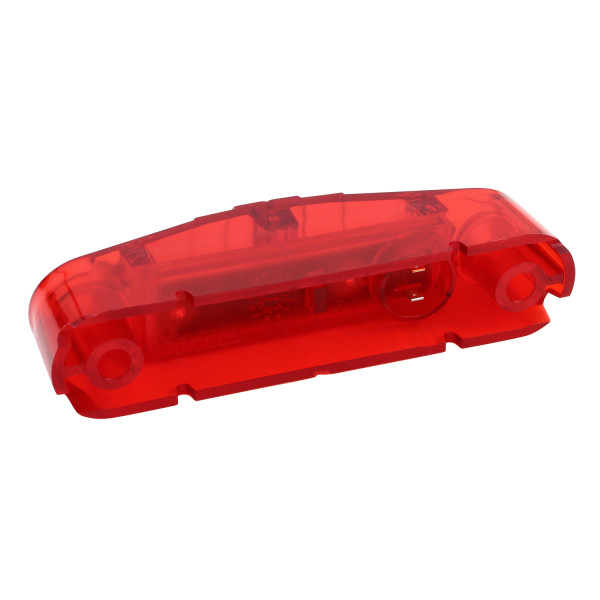

  • supernova thin line led clearance marker light red 360 thumbnail
  • supernova thin line led clearance marker light red thumbnail

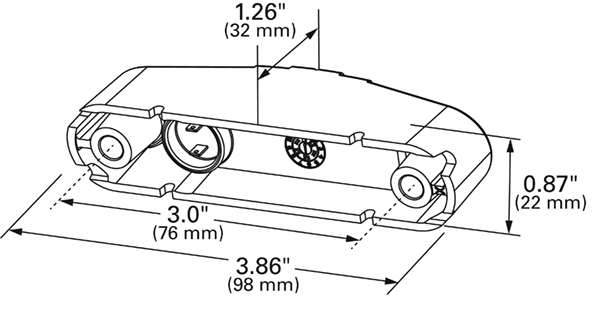

  • 47242 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Housing Color: Red
  • Amperage: .06A
  • Mounting Type: Screw
  • Connection Type: Faston Tab
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Style: Thin-Line
Features & benefits
  • Field-replaceable lens, 3" mounting center
  • Meets PC function when mounted at a 45° angle
  • Encapsulant potting for total circuit-board protection
  • Anti-torque design protects against over-tightening and lens cracking
  • Wire exit holes at ends allow for flow-through harnessing
Find a Local Distributor

Replacements, Tools & Accessories

Pigtail Thin-Line LED Pigtail, 6" Long, Ground Return
66931
 Pigtail Thin-Line LED Pigtail, 5" Long, Chassis Ground System
66930

Customer reviews

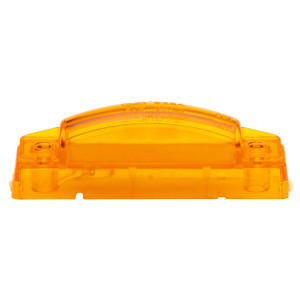

  • 47243

    LED and electrical seems well made, structurally is fair with expected stress cracking at attachment points. Cannot understand the point of having a "field replaceable" lens if you do not offer the lens for sale separately from the whole unit though.

    Jon K. Sep 18, 2018
