SuperNova® 3" Thin-Line LED Clearance Marker Lights

Grote's SuperNova® 3" Thin-Line LED Clearance Marker Lights with encapsulant potting for total circuit-board protection. Meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

471733" Thin-Line, Amber

471733" Thin-Line, Amber

  • 47173 thumbnail
  • 47173 back thumbnail
  • 47173 line art thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Voltage: 12.8 V
  • Mounting Type: Screw
  • Connection Type: Faston Tab
  • Lens Color: Amber
  • Amperage: 0.075 A
  • Size: 3"
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Acrylic
  • Product Type: Clearance Marker
  • Style: Thin-Line
  • Standards: SAE J592E, SAE J1889
  • Heated (Y/N): N

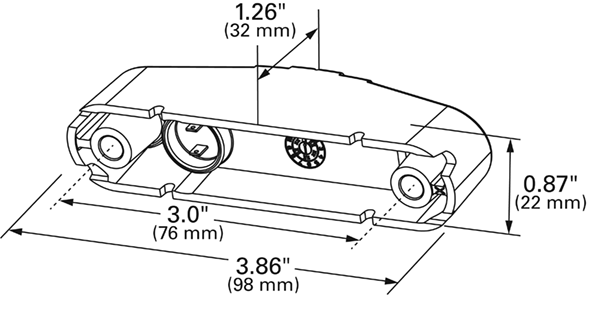

  • Dimensions: 3.84" x 1.26" x 0.87"
  • P2, PC, R7, R23 Functions: PC, P2
  • Warranty: 10 Years
  • Product Line: SuperNova®
Features & benefits
  • 3" mounting center
  • Meets PC function when mounted at a 45° angle
  • Encapsulant potting for total circuit-board protection
  • Anti-torque design protects against over-tightening and lens cracking
  • Wire exit holes at ends allow for flow-through harnessing
