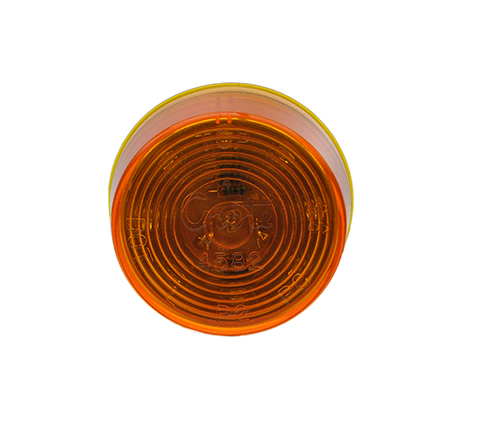

Hi Count® 2" 9-Diode LED Clearance Marker Lights

Grote's Hi Count® 2" 9-Diode LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.
Grote Loading Ajax Spinner

G3003Amber

G3003Amber

  • G3003 360 thumbnail
  • G3003 thumbnail

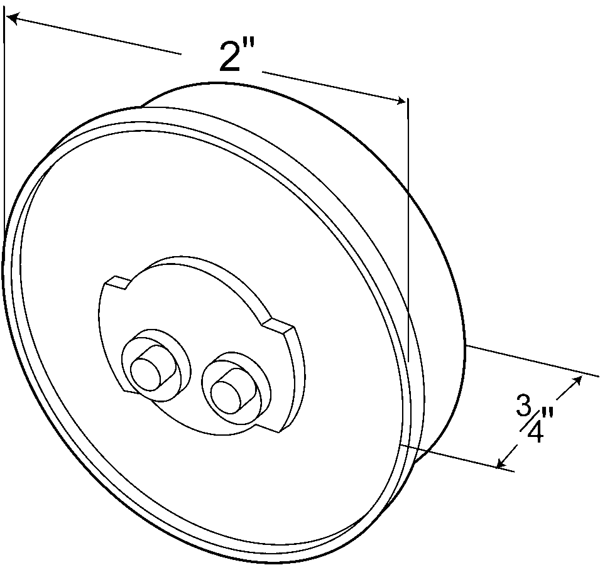

  • g3003-5 - drawing thumbnail
  • G3003 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • VMRS: 034-004-253
  • Product Line: Hi Count®
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Amber
  • Shape: Round
  • Amperage: .07A
  • Size: 2"
  • Functions: P2
  • Regulations: FMVSS 108
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Product Type: Clearance Marker
  • Housing Color: White
  • Voltage: 12V
  • Warranty: 2 Years
  • Bulk Pack #G3003-3: 48
Features & benefits
  • Hermetic lens-to-housing seal
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43690
43690

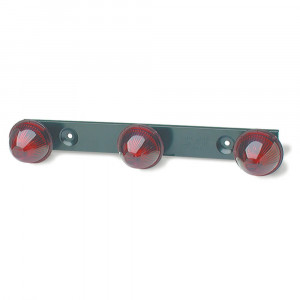

 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket 43150
43150
 Bracket 43152
43152
 Bracket 43153
43153
 Bracket 43532
43532
 Bracket 43760
43760
 Bracket 42180
42180
 Grommet 92120
92120
 Grommet 92150
92150
 Grommet 93760
93760
 Pigtail 66851
66851
 Pigtail 66850
66850
 Pigtail 67001
67001
 Pigtail 67050
67050
 Pigtail 66800
66800
 Pigtail 66840
66840
 Pigtail 66801
66801
