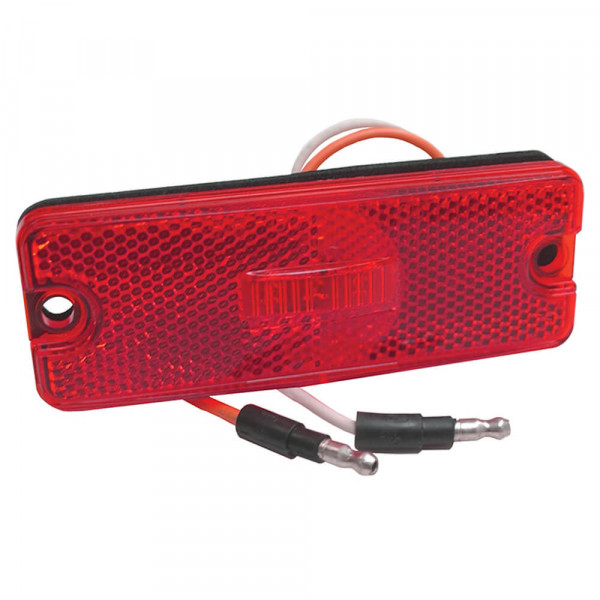

Sealed Rectangular LED Clearance Marker Lights

Grote's Sealed Rectangular LED Clearance Marker Lights are potted for total circuit-board protection against vibration and corrosion.
Grote Loading Ajax Spinner

47732Red

47732Red

  • 47732 360 thumbnail
  • 47732 thumbnail
  • 47732 - drawing thumbnail
  • 47732 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: PMMA Lens, PMMA Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Red
  • Voltage: 12/24 V
  • Amperage: 0.05 A
  • Mounting Type: Screw
  • Connection Type: Standard .180" Male Bullet
  • Regulations: FMVSS 108
  • Functions: A, P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 2 Years
Features & benefits
  • Potted for total circuit-board protection against vibration and corrosion
  • Hermetic lens to housing seal
  • Fits standard mounting holes, no bracket required
  • Uses same .180" molded bullet terminations as incandescent versions for a quick, easy retrofit
