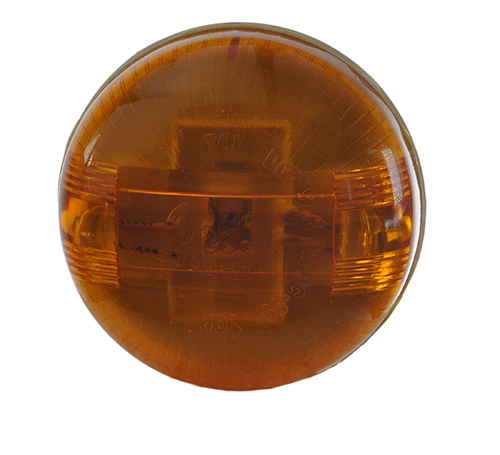

SuperNova® 2 1/2" PC Rated, LED Clearance Marker Lights

With optic lenses to optimize photometric performance and broaden light patterns, Grote's SuperNova® 2 1/2" PC Rated, LED Clearance Marker Lights consist of hermetic lens-to-housing seal and encapsulant potting for total circuit board protection. These lights use the same UBS double-seal pigtail as incandescent for a quick retrofit, while the solid-brass, tin-plated terminals are sealed to the housing to resist corrosion and eliminate failure-causing leak paths. Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer.
Grote Loading Ajax Spinner

47233

47233

  • 47233 360 thumbnail
  • 47233 thumbnail
  • 47233 - drawing thumbnail
  • 47233 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Product Line: SuperNova®
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Lens Color: Amber
  • Shape: Round
  • Amperage: .06A
  • Size: 2½"
  • Functions: PC, P3, P2
  • Regulations: FMVSS 108
  • VMRS: 034-004-253
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Product Type: Clearance Marker
  • Diameter: 2.5"
  • Housing Color: White
  • Warranty: 10 Years
Features & benefits
  • Uses same UBS double seal pigtail as incandescent for a quick retrofit
  • Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer
  • Hermetic lens to housing seal
  • Encapsulant potting for total circuit board protection
  • Optic lens optimizes photometric performance and broadens light pattern

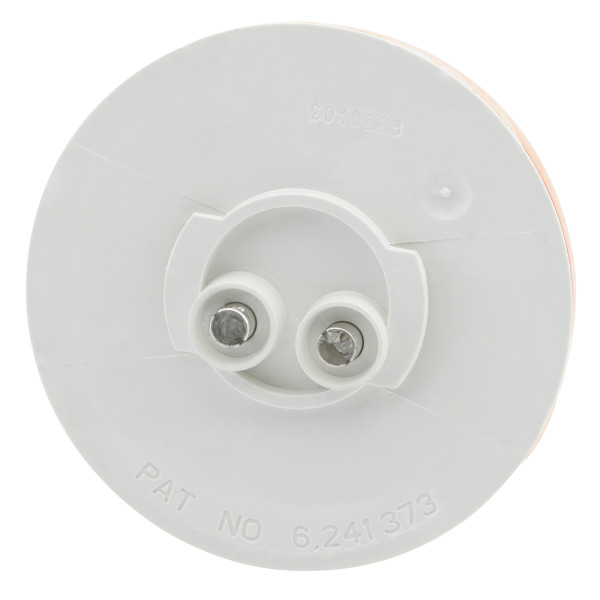

  • Tin-plated, solid brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
