    3" SuperNova® LED Clearance Marker Lights

    Grote's 3" SuperNova LED Clearance Marker Lights have tin-plated, solid brass terminals to resist corrosion and eliminate failure-causing leak paths.
    Grote Loading Ajax Spinner

    47083Yellow

    47083Yellow

    • 3 supernova led clearance marker light yellow thumbnail

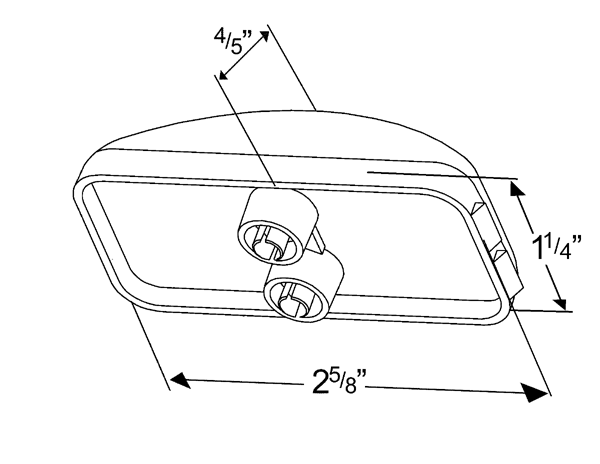

    • 47083 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Polycarbonate Housing, Polycarbonate Lens
    • Color: Yellow
    • Lens Color: Yellow
    • Housing Color: White
    • Amperage: .06A
    • Mounting Type: Grommet, Bracket
    • Connection Type: PL-10
    • Size: 3"
    • Regulations: FMVSS 108
    • Functions: P2
    • VMRS: 034-004-253
    • Bulk Pack #47083-3: 48
    Features & benefits
    • Encapsulant potting for total circuit board protection
    • Tin-plated, solid brass terminals are sealed to housing to resist corrosion and eliminate failure-causing leak paths
    • Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
    • Hermetic lens-to-housing seal

    Replacements, Tools & Accessories

    Bracket Rail-Mount Bracket For Small Rectangular Lights, White Kit (42131 + 67050)
    43370
     Bracket Bracket For Small Rectangular Lights, Gray Kit
    43970
     Bracket Bracket For Small Rectangular Lights, Chrome Plated Kit
    43980
     Grommet Grommet For Small Rectangular Lights, PVC, Black
    91380
     Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
    66851
     Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
    66850
     Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
    67001
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
    66800
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
    66801
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
    66840
     Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
    67050
