Clearance Marker Lights with Built-In Reflector

Grote's Clearance Marker Lights with Built-In Reflector fits popular grommets, pigtails and harnesses with a 12,000+ hour bulb in a hermetic lens-to-housing seal.
Grote Loading Ajax Spinner

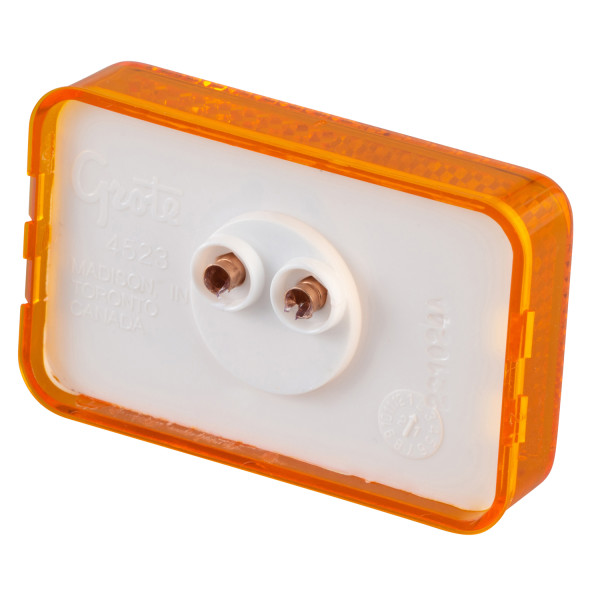

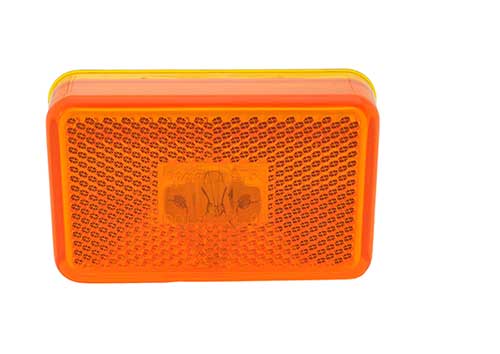

45233Built-In Reflector

45233Built-In Reflector

  • 45233 360 thumbnail
  • 45233 thumbnail

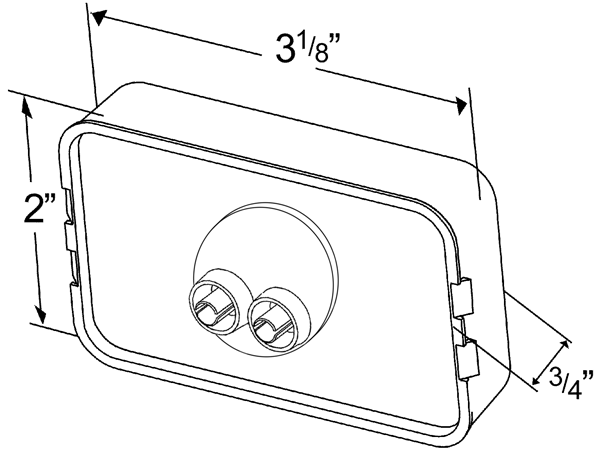

  • 45233 - drawing thumbnail
  • 45233 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Amperage: 0.33 A
  • Mounting Type: Grommet
  • Connection Type: Female Pin
  • Regulations: FMVSS 108
  • Functions: A, P2
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Product Type: Clearance Marker
  • Shape: Rectangular
  • Warranty: 2 Years
Features & benefits
  • 12,000+ hour bulb
  • Hermetic lens-to-housing seal
  • OE replacement for Knapheide®
  • Fits popular grommets, pigtails and harnesses
Find a Local Distributor

Replacements, Tools & Accessories

Grommet 93400
93400
 Grommet 93402
93402
 Pigtail 66851
66851
 Pigtail 66850
66850
 Pigtail 67001
67001
 Pigtail 67050
67050
 Pigtail 66800
66800
 Pigtail 66840
66840
 Pigtail 66801
66801
