3" Clearance Marker Lights

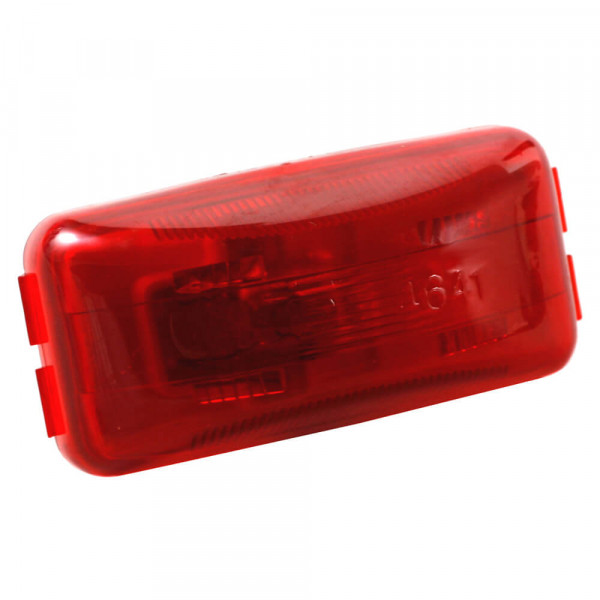

Grote's rectangular 3" Clearance Marker Lights fit narrow applications and meet PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner

46412

46412

  • 3" Clearance Marker Light red 360 thumbnail
  • 3" Clearance Marker Light red thumbnail
  • 46412 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

47082
3" SuperNova® LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 3"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Bulk Pack #46412-3: 50
Features & benefits
  • Uses double-seal UBS pigtail
  • Meets PC function only when mounted at a 45° angle
  • Hermetic lens-to-housing seal
  • Rectangular shape fits narrow applications
  • 12-volt version features a 12,000+ hour bulb
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Rail-Mount Bracket For Small Rectangular Lights, White Kit (42131 + 67050)
43370
 Bracket Bracket For Small Rectangular Lights, Gray Kit
43970
 Bracket Bracket For Small Rectangular Lights, Chrome Plated Kit
43980
 Bracket Header-Mount Bracket For Small Rectangular Lights, White
42141
 Bracket Header-Mount Bracket For Small Rectangular Lights, White Kit (42141 + 67050)
43380
 Bracket Header-Mount Bracket For Small Rectangular Lights, White
42141
 Grommet Grommet For Small Rectangular Lights, PVC, Black
91380
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ground Return
66851
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Chassis Ground
66850
 Pigtail Sealed Marker Light Pigtail, Double Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67001
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Slim-Line .180 Male
66800
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ground Return
66801
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Chassis Ground, Standard .180 Male
66840
 Pigtail Sealed Marker Light Pigtail, Single Seal, 6" Long, Ring Terminal Ground, Blunt Cut Wire
67050
