SuperNova® 2 1/2" LED Clearance Marker Lights

With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Grote Loading Ajax Spinner

78423ABS

78423ABS

  • 78423 thumbnail

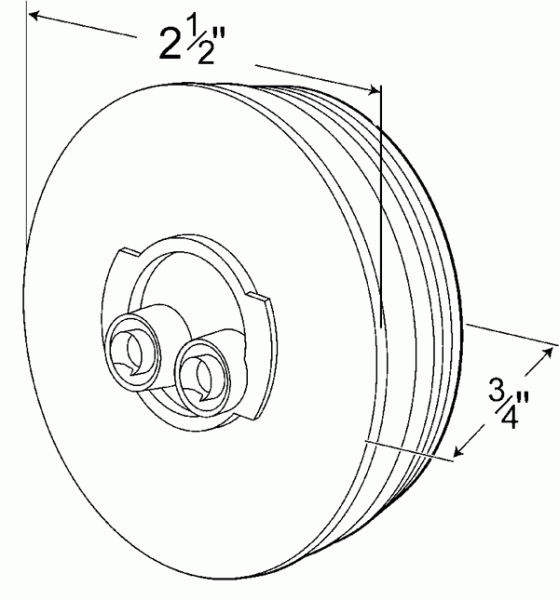

  • 78423 - drawing thumbnail
  • 78423 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Amperage: 0.06 A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2.5"
  • Height: 0.75"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Diameter: 2.5"
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit-board protection
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
