Triple-Light ID Harness

Grote Loading Ajax Spinner

6611154" Long

6611154" Long

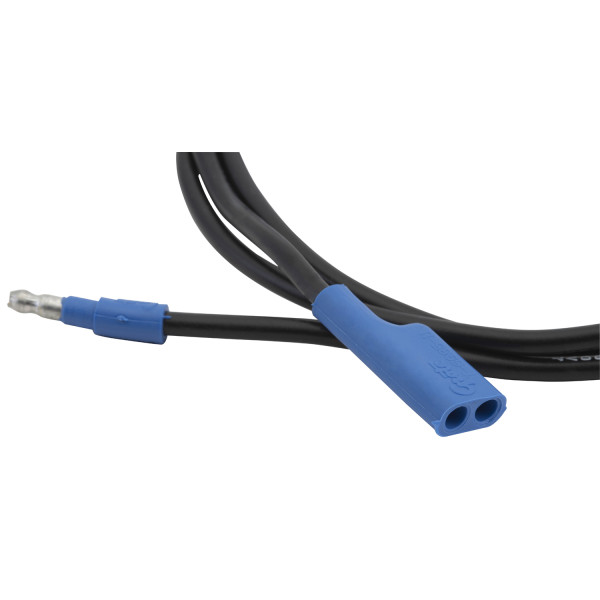

  • Triple-Light ID Harness, 54" Long, Universal Jumper (31"x12"x12") thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Side Two: Slim-Line .180" Male Bullet
  • Connector Quantity: 2
  • Connector Side One: Slim-Line .180" Female Bullet
  • Wire Material: GPT
  • Color: Blue
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet, .180" Slim-Line Female Receptacle
  • Length: 4' 6" (54")
  • Wire Length: 53"
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-023
  • # of Wires: 1
  • Style: Jumper Harness
Features & benefits

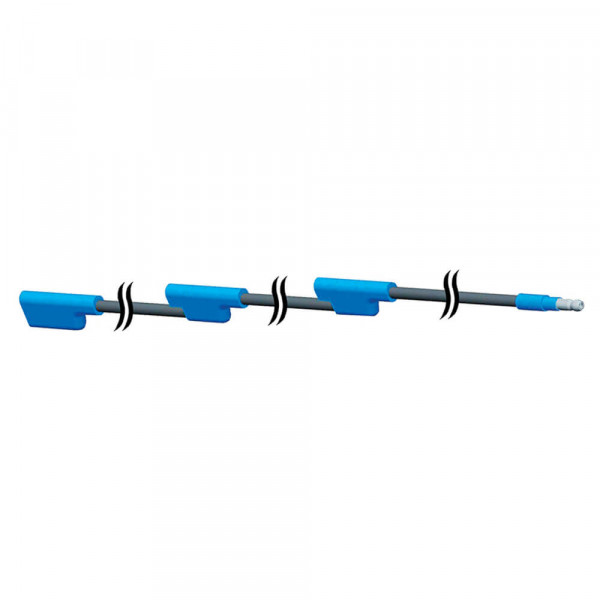

  • Universal Triple-ID Jumper (31"x12"x12")
  • Slim-line .180 male terminations at power end
  • Factory-molded plugs resist moisture and corrosion
  • Designed for use with ULTRA-BLUE-SEAL® wiring system
