SuperNova® LED Clearance Marker Light with Built-In Reflector

Grote's SuperNova® LED Clearance Marker Light with Built-In Reflector have encapsulant potting for total circuit board protection and tin-plated, solid brass terminals, sealed to resist corrosion.
Grote Loading Ajax Spinner

47502Built-In Reflector

47502Built-In Reflector

  • supernova led clearance marker light reflector red thumbnail

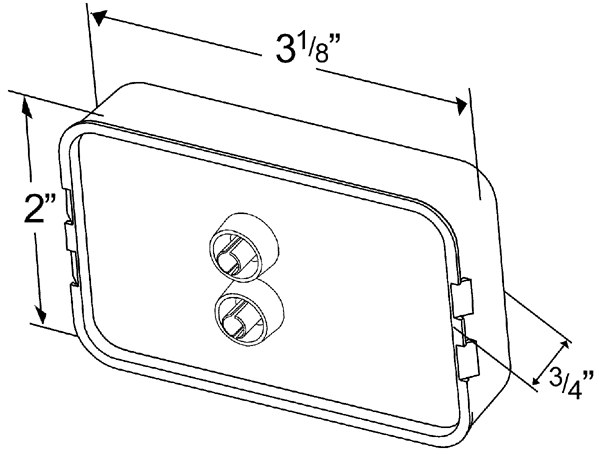

  • 47502 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Grommet
  • Connection Type: PL-10
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: P2, A
  • VMRS: 034-004-253
Features & benefits
  • Hermetic lens-to-housing seal
  • Fits popular grommets and pigtails
  • Tin-plated, solid brass terminals are sealed to housing to resist corrosion and eliminate failure-causing leak paths
  • Encapsulant potting for total circuit board protection
