SuperNova® 2" LED Clearance Marker Lights

Grote's SuperNova® 2" LED Clearance Marker Lights with encapsulant potting for total circuit board protection with tin-plated, solid-brass terminals sealed to resist corrosion.
Grote Loading Ajax Spinner

78433ABS

78433ABS

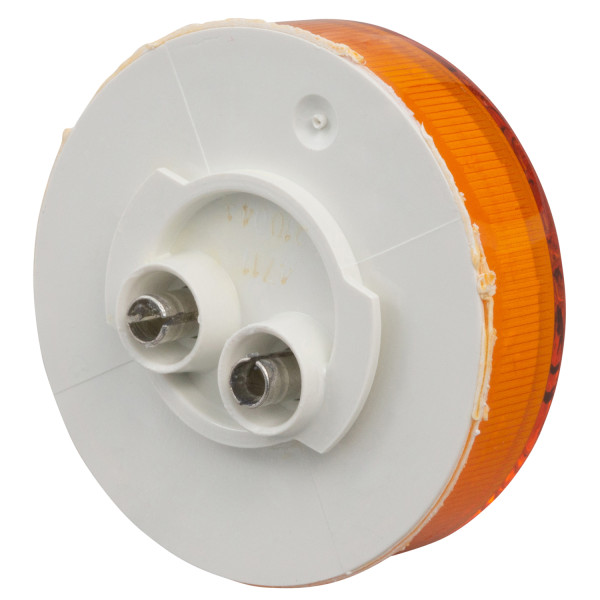

  • 78433 thumbnail

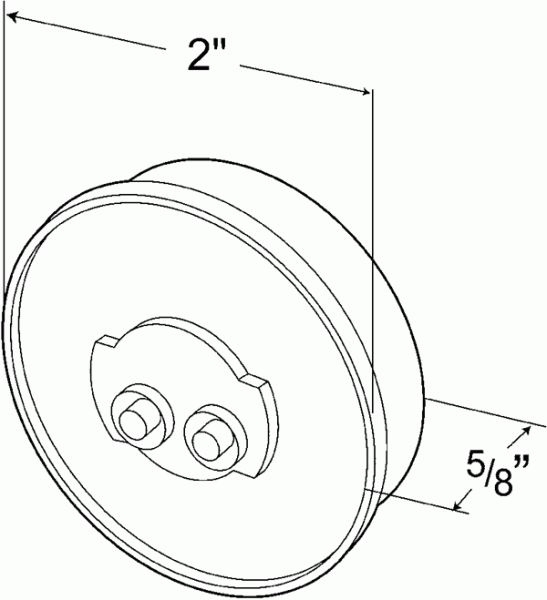

  • Grote product drawing - 2" LED Clearance Marker Light thumbnail
  • 78433 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Amperage: 0.06 A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2"
  • Height: 0.63"
  • Regulations: FMVSS 108
  • Functions: P3, P2
  • VMRS: 034-004-253
  • Diameter: 2"
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Fits all popular mountings and grommets
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Meets PC function when mounted at a 45° angle
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
  • Uses same UBS double-seal pigtail as incandescent for quick retrofit
