Sealed Marker Light Pigtails

Grote Loading Ajax Spinner

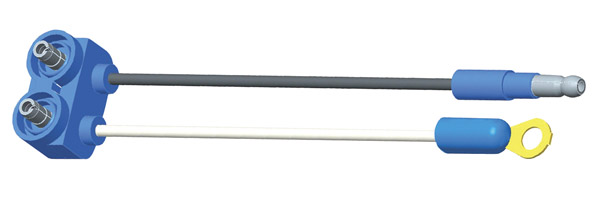

66850Double Seal, Chassis Ground, 6″ Wire

66850Double Seal, Chassis Ground, 6″ Wire

  • 66850 thumbnail
  • 66850 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Wire Material: GPT
  • Connector Quantity: 3
  • Connector Side One: Ring Terminal/Slim-Line .180" Male Bullet
  • Connector Side Two: PL-10
  • Wire Gauge: 16 GA
  • Connection Type: Slim-Line .180" Male Bullet/Ring terminal, PL-10
  • Length: 6"
  • Wire Length: 5"
  • Fits: 2" and 2 1/2" Round marker Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-042
  • Product Type: Pigtail
  • # of Wires: 2
  • Style: Pigtail
Features & benefits
  • Sealed to resist corrosion
  • Slim-line .180" male connector
  • Factory-molded plugs for use with ULTRA-BLUE-SEAL
  • Fits 2", 2½" round, and beehive-style LED and incandescent lamps
